Farmall Super MD
| | 1952 - 1954 |
| Row-Crop tractor |
|
Series map:
Super MD
52.8hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Farmall (a part of International Harvester)
|
| Row-Crop tractor |
| Built in Rock Island, Illinois, USA |
| Total built | 5,199
|
| | 89 (Super MDV)
|
| Variants |
| Super M | gasoline engine
|
| Super MD-TA | Torque Amplifier transmission
|
| Farmall Super MD Power |
| Drawbar (claimed) | 42 hp
31.3 kW
|
| PTO (claimed) | 47.5 hp
35.4 kW
|
| Drawbar (tested) | 39.52 hp
29.5 kW
|
| Belt (tested) | 46.73 hp
34.8 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Differential mechanical disc brakes |
| Open operator station. |
| Hydraulics |
| Type | IH Lift-All
|
| Tractor hitch |
| Type | IH Fast Hitch
|
| Power Take-off (PTO) |
| Rear PTO Type | 540
|

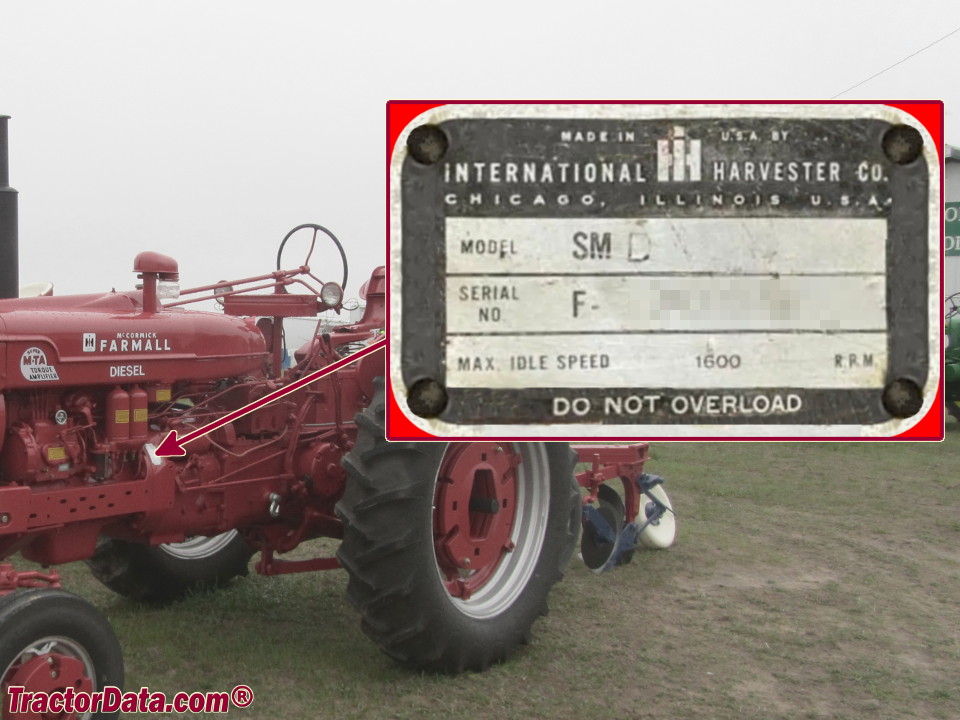

| Super MD Serial Number Location |
 |
| Serial number plate on the right side of the clutch housing. |
| Electrical |
| Ground | positive
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| Operator's Manual Farmall Super M-TA Diesel Tractors (1004323) published in 1954 |
| New McCormick Farmall Super M-TA published in 1954, by International Harvester |
| Farmall Super M-TA published in 1954, by International Harvester |
