John Deere 6510L Transmission


John Deere 6510L tractor photo
1999 - 2002
6000 TEN Series
Orchard/Vineyard tractor
Series map:
6410L
6510L
104.0hp
114.0hp
Transmission options
16-speed four-speed power shift
38-speed four-speed power shift
Transmission
TransmissionJohn Deere PowrQuad
Typefour-speed power shift
Gears16 forward and reverse
Oil capacity51.6 qts
48.8 L
Oil type
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Viscosity HY-GARD
Four power shift gears in four synchronized ranges, with reverser.
Speeds
With 18.4-30 rear tires.

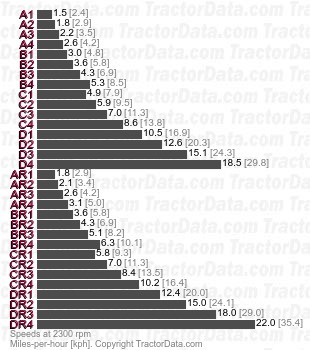

6510L PowrQuad four-speed power shift speeds
Transmission
TransmissionPowrQuad Creeper
Typefour-speed power shift
Gears38 forward and reverse
Creeper option adds an additional low-speed for ranges A, B, and C.
Speeds

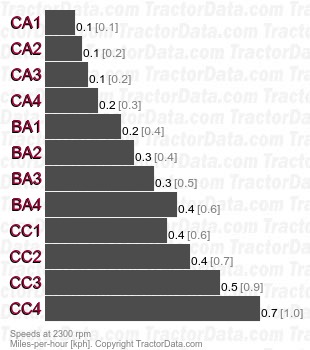

6510L PowrQuad Creeper four-speed power shift speeds
