John Deere 1120

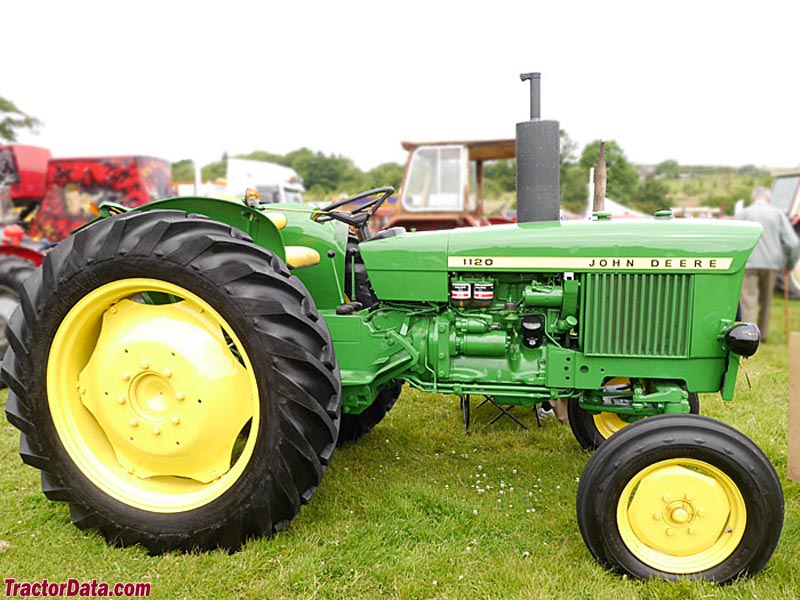

John Deere 1120 tractor photo
1967 - 1975
Utility tractor
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 1120 Engine
John Deere 2.7L 3-cyl diesel
Engine details ...
John Deere 1120 Transmissions
8-speed partially synchronized
16-speed two-speed power shift
Transmission details ...
John Deere 1120 Power
Engine (gross)53 hp
39.5 kW
Engine (net)51 hp
38.0 kW
PTO (claimed)45 hp
33.6 kW
Mechanical
Two-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Steeringmanual
Steeringpower OptOptional
Hydraulic wet disc brakes
Open operator station. Two-post fixed ROPS available.
Capacity
Fuel16.5 gal
62.5 L
Hydraulic system10 gal
37.9 L
Hydraulics
Typeclosed center
Capacity10 gal
37.9 L
Pressure2250 psi
155.1 bar
Pump flow12.9 gpm
48.8 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Rear lift3570 lbs
1619 kg
Power Take-off (PTO)
Rear PTOlive
 independent OptOptional
Rear PTO Type540/1000 (1.375)
Engine RPM540@2100
 1000@2100
Front PTOindependent OptOptional
Front PTO Type1000
Dimensions & Tires
Wheelbase80.7 inches
204 cm
Weight5557 lbs
2520 kg
Front tire7.50-16
Rear tire12.4/11-36
Full dimensions and tires ...
1120 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps28
 33
 55
Charging volts14
Batteries2
Battery volts12
References
1120 references literature
Operator's Manual 145 Loader (OMW21474)
Operator's Manual 1020, 1120 and 1630 Tractors published by John Deere
1120 published in 1969, by John Deere
Tractor 1120 published in 1974, by John Deere
1120 and Major Competitors published in 1971, by John Deere
