John Deere 1120 Transmission


John Deere 1120 tractor photo
1967 - 1975
Utility tractor
Transmission options
8-speed partially synchronized
16-speed two-speed power shift
Transmission
Typepartially synchronized
Gears8 forward and 4 reverse
Clutchdry disc
Four synchronized gear in two ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 12.4/11-36 rear tires.

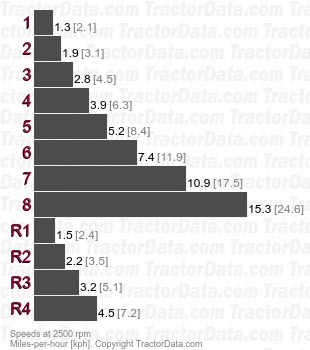

1120  partially synchronized speeds

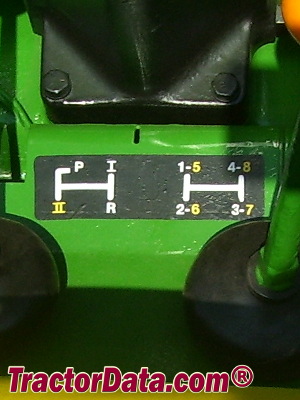

Shift Pattern
John Deere 1120 transmission controls
Transmission
Typetwo-speed power shift
Gears16 forward and 8 reverse
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash.
