Tractors > John Deere > 6310

John Deere 6310

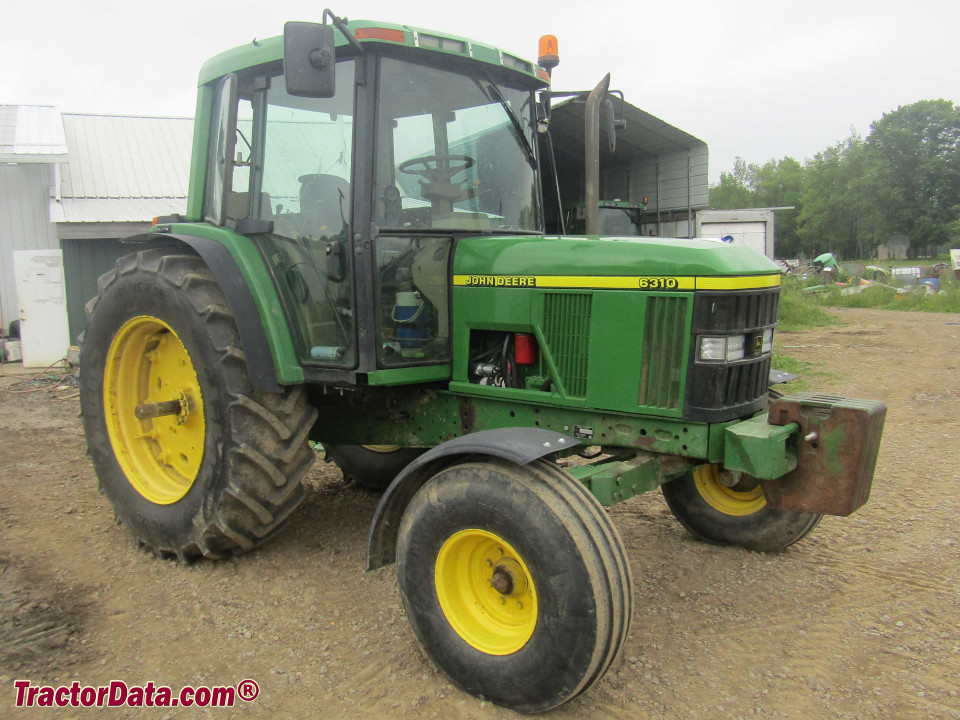

John Deere 6310 tractor photo
1999 - 2002
6000 TEN Series
Utility tractor
Series map:
6210
6310
6410
90.0hp
99.0hp
104.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Variants
6310utility tractor
6310Llow-profile ROPS
6310Slow-profile cab
John Deere 6310 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank30.7 gal*Standard on ROPS-equipped tractors. Optional on cab tractors.
116.2 L
 43.6 gal*Standard on cab tractors. Optional on ROPS tractors.
165.0 L
 48 gal*Optional on cab tractors.
181.7 L
Engine details ...
John Deere 6310 Transmissions
12-speed fully synchronized
16-speed four-speed power shift
24-speed four-speed power shift
Transmission details ...
John Deere 6310 Power
Engine (gross)99 hp
73.8 kW
PTO (claimed)80 hp
59.7 kW
Drawbar (tested)66.1 hp
49.3 kW
PTO (tested)87.4 hp
65.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post ROPS. ComfortGard cab optional with air-conditioning.
Photos
No photos of the John Deere 6310 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure-flow compensating
Pressure2900 psi
200.0 bar
Valves1 to 4
Pump flow25.4 gpm
96.1 lpm
 18.9 gpmOptOptional
71.5 lpm
Tractor hitch
Rear TypeII
Controlelectronic lower-link draft sensing
Rear lift4900 lbs
2222 kg
Front Hitchoptional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
 540/1000 (1.375)OptOptional
Dimensions & Tires
Wheelbase94.5 inches
240 cm
Weight7497 to 9735 pounds
Front tire7.50-18
2WD Rear tire18.4-34
Full dimensions and tires ...
John Deere 6310 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps90
Cab Charging amps115
Battery CCA830
 1230 OptOptional
Battery volts12
Battery AH110
 154 OptOptional
References
6310 references literature
6000 TEN Series published in 1998, by John Deere
6000 TEN Series and Advantage Series Tractors published in 1998, by John Deere
6000 TEN Series Tractors and Advantage Series Tractors Product Information Handbook published in 1998, by John Deere
