John Deere 9200 Transmission


John Deere 9200 tractor photo
1996 - 2001
Model year
9000 Series
Four-wheel Drive (4WD) tractor
Series map:
9100
9200
9300
260.0hp
310.0hp
360.0hp
Transmission options
12-speed partially synchronized
24-speed partial power shift
12-speed full power shift
Transmission
TransmissionJohn Deere Syncro
Typepartially synchronized
Gears12 forward and 3 reverse
Oil capacity147.2 qts (100mm axle)
139.3 L
 151.6 qts (110mm axle)
143.5 L
 151.2 qts (PTO 100mm axle)
143.1 L
 155.6 qts (PTO 110mm axle)
147.3 L
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.
Speeds
With 20.8R42 tires.
9200 Syncro partially synchronized speeds
Transmission
TransmissionJohn Deere PowrSync
Typepartial power shift
Gears24 forward and 6 reverse
Oil capacity147.2 qts (100mm axle)
139.3 L
 151.6 qts (110mm axle)
143.5 L
 151.2 qts (PTO 100mm axle)
143.1 L
 155.6 qts (PTO 110mm axle)
147.3 L
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.
Speeds
With 20.8R42 tires.

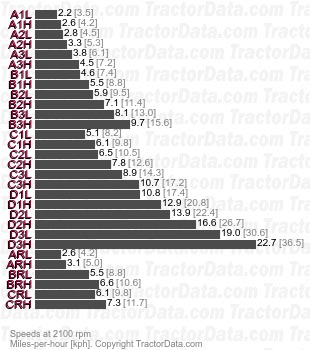

9200 PowrSync partial power shift speeds
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears12 forward and 2 reverse
Oil capacity64 qts
60.6 L
 60 qts (no PTO)
56.8 L
 120 qts (axles)
113.6 L
Speeds
With 20.8R42 tires.

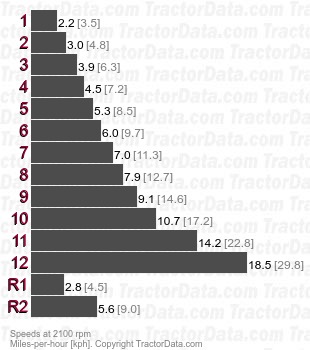

9200 PowerShift full power shift speeds
