Tractors > John Deere > 9200

John Deere 9200 Engine



John Deere 9200 tractor photo
1996 - 2001
Model year
9000 Series
Four-wheel Drive (4WD) tractor
Series map:
9100
9200
9300
260.0hp
310.0hp
360.0hp
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement643 ci
10.5 L
Bore/Stroke5.00x5.43 inches
127 x 138 mm
Power310 hp
231.2 kW
Compression16:1
Rated RPM2100
Coolant capacity56 qts
53.0 L
Engine Oil

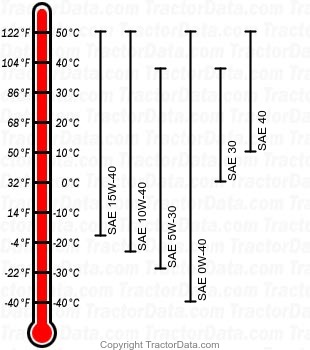

9200 diesel engine oil chart
Oil capacity44 qts
41.6 L
