John Deere 8200
| | 1995 - 1999 |
|
| 8000/8000T Series | | Row-Crop tractor |
|
Series map:
8100
8200
8300
177.8hp*
200.0hp*
222.2hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| John Deere 8200 Power |
| PTO (claimed) | 180 hp
134.2 kW
|
| Drawbar (tested) | 159.63 hp
119.0 kW
|
| PTO (tested) | 202.33 hp
150.9 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | electro-hydraulic
|
| Steering | hydrostatic power
|
| Differential hydraulic wet disc brakes |
| CommandView Cab standard. Row-Trak guidance optional. |
| Capacity |
| Fuel | 135 gal
511.0 L
|
| Hydraulic system | 37 gal
140.0 L
|
| Front hubs | 3.2 qts (each)
3.0 L
|
| Front diff. | 11.5 qts
10.9 L
|
| Hydraulics |
| Type | closed center pressure-flow compensated (PFC)
|
| Capacity | 37 gal
140.0 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 3 to 5
|
| SCV flow | 30 gpm
113.6 lpm
|
| Tractor hitch |
| Rear Type | 3/3N
|
| Control | electro-hydraulic draft sensing
|
| Rear lift | 10,400 lbs
4717 kg
|
| | 14,165 lbs (optional)
6425 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1.75)
|
| | 540/1000 (1.375 optional)
|

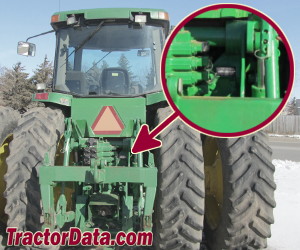

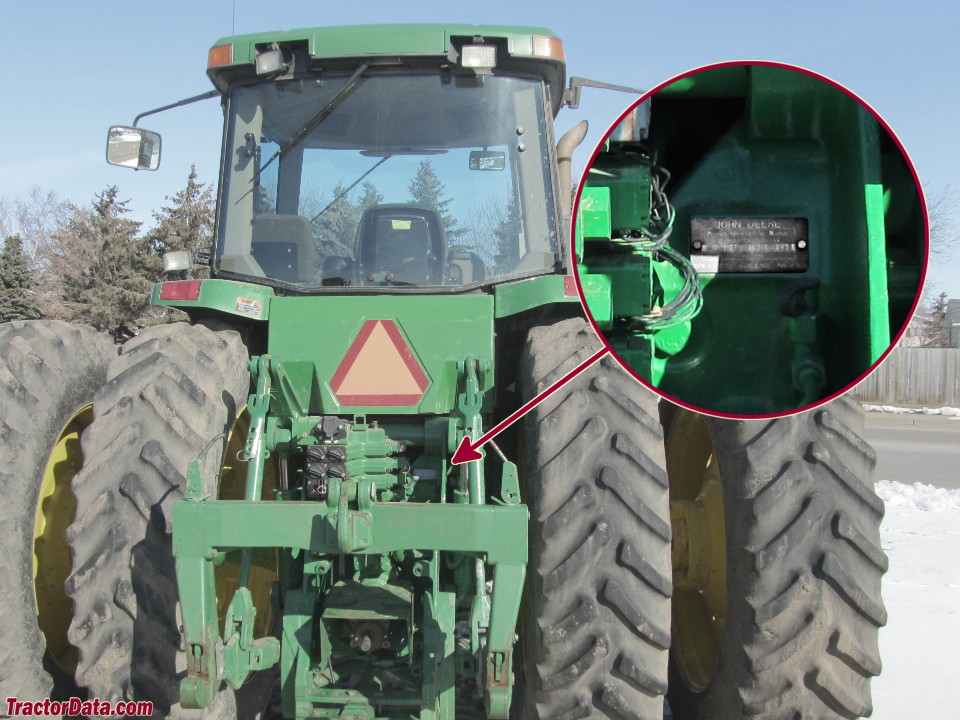

| 8200 Serial Number Location |
 |
| Serial number plate on the rear of the tractor, above the PTO shaft. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 140
|
| Batteries | 2
|
| Battery CCA | 1,850
|
| Battery volts | 12
|
| References |
 |
| New 8000 Series Tractors published in 1995, by John Deere |
| 8000 Series Tractors published in 1996, by John Deere |
| Operator's Manual 8100, 8200, 8300 and 8400 Tractors (OMAR113872) published in 1994 |
