John Deere 7610


John Deere 7610 tractor photo
1997 - 2002
7010 Series
Row-Crop tractor
Series map:
7510
7610
7710
135.0hp
140.0hp
155.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
John Deere 7610 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...
John Deere 7610 Transmissions
16-speed partial power shift
19-speed full power shift
20-speed partial power shift
Transmission details ...
John Deere 7610 Power
Engine140 hp
104.4 kW
PTO (claimed)120 hp
89.5 kW
Drawbar (tested)108.47 hp
80.9 kW
PTO (tested)126.83 hp
94.6 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic
Power steering
Hydraulic wet disc brakes
Cab standard.
Capacity
Fuel65 gal
246.0 L
 91 gal (optional)
344.4 L
Front axle15.2 qts
14.4 L
Front hubs2 qts
1.9 L
Hydraulics
Typeclosed center pressure flow compensated (PFC)
Pressure2900 psi
200.0 bar
Valves2 to 5
SCV flow26 gpm
98.4 lpm
Tractor hitch
Rear TypeIIIN/II
Rear lift7725 lbs
3504 kg
 8925 lbs*Optional with two-wheel drive.
4048 kg
 10050 lbs*Optional with four-wheel drive.
4558 kg
Front HitchIIIN/II OptOptional
Front lift7700 lbs
3492 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet discs
Rear PTO Type540/1000 (1.375)
Engine RPM540@2100
 1000@2100
Dimensions & Tires
2WD Wheelbase114.4 inches
290 cm
4WD Wheelbase110.2 inches
279 cm
Weight12352 to 14540 pounds
Front tire11.00-16
2WD Rear tire18.4-38
Full dimensions and tires ...
7610 Serial Number Location

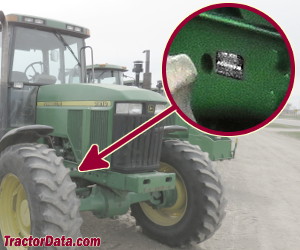

John Deere 7610 serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
7610 Serial Numbers
19971001
199810001
199920001
200030001
200150001
200270005

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps140
Batteries2
Battery CCA925
Battery volts12
References
7610 references literature
7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1998, by John Deere
7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1999, by John Deere
New 95- to 150-HP 7000 TEN Series Tractors published in 1996, by John Deere
7000 TEN Series published in 1999, by John Deere
New 7000 TEN Series Tractors - Feel The Earth Move published in 1996, by John Deere
