John Deere 7610 Tests


John Deere 7610 tractor photo
1997 - 2002
7010 Series
Row-Crop tractor
Series map:
7510
7610
7710
135.0hp
140.0hp
155.0hp
Tractor Tests
OECD 1724: diesel PowrQuad 16-speed 4WD
OECD 1725: diesel PowerShift 4WD
OECD 1787: diesel PowrQuad 20-speed 4WD
OCED Tractor Test 1724

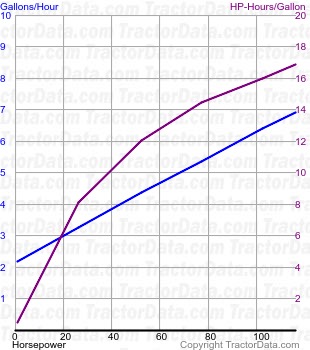

7610 fuel use from test 224
OCED Tractor Test 1724
Diesel PowrQuad 16-speed 4WD
May 27 - June 18, 1997
Link: OCED Tractor Test 1724 file
PTO performance
Max power118.07 hp
88.0 kW
Fuel use6.8 gal/hour
25.7 l/hour
Power at rated engine speed115.94 hp
86.5 kW
Fuel use6.9 gal/hour
26.1 l/hour
Drawbar performance
Max power103.19 hp
76.9 kW
Fuel use6.9 gal/hour
26.1 l/hour
Max pull13,610 lbs
6173 kg
OCED Tractor Test 1725

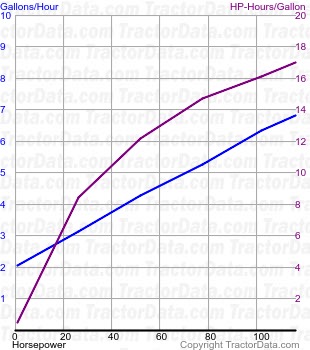

7610 fuel use from test 225
OCED Tractor Test 1725
Diesel PowerShift 4WD
May 22 - June 18, 1997
Link: OCED Tractor Test 1725 file
PTO performance
Max power117.27 hp
87.4 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated engine speed115.96 hp
86.5 kW
Fuel use6.8 gal/hour
25.7 l/hour
Drawbar performance
Max power96.26 hp
71.8 kW
Fuel use6.7 gal/hour
25.4 l/hour
Gear 11 used for power test.
Max pull14,475 lbs
6565 kg
Gear 5 used for pull test.
OCED Tractor Test 1787
Diesel PowrQuad 20-speed 4WD
October 26 - November 7, 2000
Link: OCED Tractor Test 1787 file
PTO performance
Max power126.83 hp
94.6 kW
Fuel use7.0 gal/hour
26.5 l/hour
Power at rated engine speed120.63 hp
90.0 kW
Fuel use7.1 gal/hour
26.9 l/hour
Drawbar performance
Max power108.47 hp
80.9 kW
Fuel use7.1 gal/hour
26.9 l/hour
Max pull17,738 lbs
8045 kg
