John Deere 7410
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| Original price | $56,000 |
| Variants | |
| 7410 | row-crop |
| 7410 Hi-Crop | high clearance |
| John Deere 7410 Engine | |
| John Deere 6.8L 6-cyl diesel | |
 Engine details ... |
| John Deere 7410 Transmissions | |
| 12-speed fully synchronized | |
| 16-speed partial power shift | |
| 20-speed partial power shift | |
| 28-speed partial power shift | |
 Transmission details ... |
| John Deere 7410 Power | |
| Engine | 120 hp 89.5 kW |
| PTO (claimed) | 105 hp 78.3 kW |
| Drawbar (tested) | 95.86 hp 71.5 kW |
| PTO (tested) | 109.54 hp 81.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | electro-hydraulic |
| Power steering | |
| Hydraulic wet disc brakes | |
| ComfortGard cab standard. | |
| Photos | |
 | |
 John Deere 7410 photos... | |
| Capacity | |
| Fuel | 50 gal 189.2 L |
| 2WD Hydraulic system | 15 gal 56.8 L |
| 4WD Hydraulic system | 17 gal 64.3 L |
| 16 gal (2WD creeper) 60.6 L | |
| 18 gal (4WD creeper) 68.1 L | |
| Hydraulics | |
| Type | closed center pressure flow compensated (PFC) |
| 2WD Capacity | 15 gal 56.8 L |
| 4WD Capacity | 17 gal 64.3 L |
| 16 gal (2WD creeper) 60.6 L | |
| 18 gal (4WD creeper) 68.1 L | |
| Pressure | 2900 psi 200.0 bar |
| Valves | 2 to 4 |
| Pump flow | 16 gpm 60.6 lpm |
| 26 gpmOptOptional 98.4 lpm | |
| Tractor hitch | |
| Rear Type | IIIN/II |
| 2WD Rear lift | 7400 lbs 3356 kg |
| 4WD Rear lift | 8390 lbs 3805 kg |
| Front Hitch | IIIN/II OptOptional |
| Front lift | 7700 lbs 3492 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 112.1 inches 284 cm |
| 4WD Wheelbase | 103.3 inches 262 cm |
| Weight | 11491 to 12855 pounds |
| Front tire | 11.00-16 |
| Rear tire | 18.4-38 |
 Full dimensions and tires ... | |

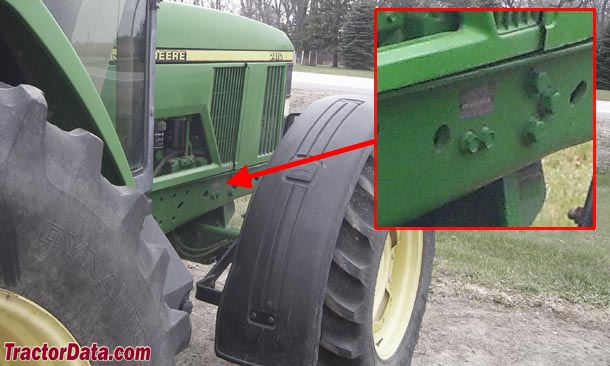

| 7410 Serial Number Location | |
 | |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| 7410 Serial Numbers | |
| 1997 | 1001 |
| 1998 | 10001 |
| 1999 | 20001 |
| 2000 | 30001 |
| 2001 | 50001 |
| 2002 | 70002 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging amps | 120 |
| Battery CCA | 925 |
| Battery volts | 12 |
| Battery Group | 31 |
| References | |
 | |
| 7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1998, by John Deere | |
| 7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1999, by John Deere | |
| New 95- to 150-HP 7000 TEN Series Tractors published in 1996, by John Deere | |
| 7000 TEN Series published in 1999, by John Deere | |
| New 7000 TEN Series Tractors - Feel The Earth Move published in 1996, by John Deere |
