John Deere 7410 Transmission



John Deere 7410 tractor photo
1997 - 2002
7010 Series
Row-Crop tractor
Series map:
7210
7410
7510
110.0hp
120.0hp
135.0hp
Transmission options
12-speed fully synchronized
16-speed partial power shift
20-speed partial power shift
28-speed partial power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchwet disc
2WD Oil capacity60 qts
56.8 L
4WD Oil capacity68 qts
64.4 L
Oil type
JD Hy-Gard
Three synchronized speeds (plus reverse) in four synchronized ranges (A-D). Synchronized shuttle shifting.
Speeds
With 18.4-38 rear tires.
7410 SyncroPlus fully synchronized speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchwet disc
2WD Oil capacity60 qts
56.8 L
4WD Oil capacity68 qts
64.4 L
Oil type
JD Hy-Gard
Four power shift speeds (1-4) in four synchronized ranges (A-D). Right- or left-hand power shuttle.
Speeds
With 18.4-38 rear tires.

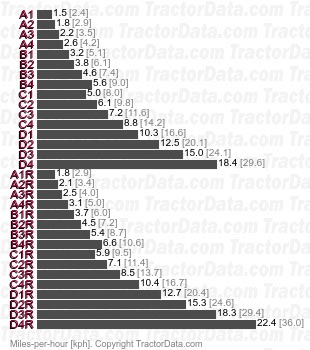

7410 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears20 forward and reverse
Clutchwet disc
2WD Oil capacity60 qts
56.8 L
4WD Oil capacity68 qts
64.4 L
Oil type
JD Hy-Gard
Four power shift speeds (1-4) in four synchronized ranges (A-E). Right- or left-hand power shuttle.
Shift Pattern
John Deere 7410 transmission controls
Transmission
TransmissionJohn Deere PowrQuad Creeper
Typepartial power shift
Gears28 forward and reverse
2WD Oil capacity64 qts
60.6 L
4WD Oil capacity72 qts
68.1 L
Oil type
JD Hy-Gard
Adds creeper range to the PowrQuad for ranges A-C. Also available on the 20-speed PowrQuad giving 32 speeds forward and reverse.
Speeds
With 18.4-38 rear tires.

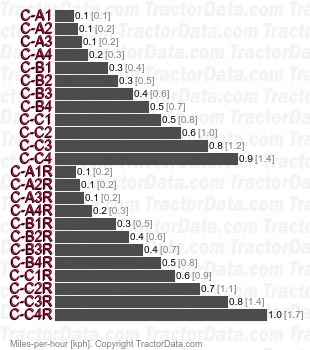

7410 PowrQuad Creeper partial power shift speeds
