John Deere 7410 Tests


John Deere 7410 tractor photo
1997 - 2002
7010 Series
Row-Crop tractor
Series map:
7210
7410
7510
110.0hp
120.0hp
135.0hp
Tractor Tests
OECD 1740: diesel SynchroPlus 4WD
OECD 1741: diesel PowrQuad 4WD
OCED Tractor Test 1740

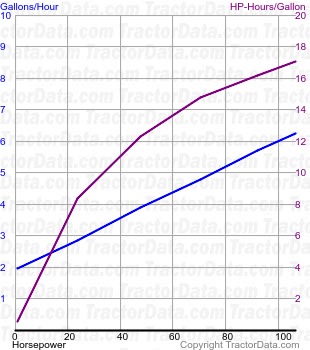

7410 fuel use from test 240
OCED Tractor Test 1740
Diesel SynchroPlus 4WD
October 9 - 22, 1997
Link: OCED Tractor Test 1740 file
PTO performance
Max power109.49 hp
81.6 kW
Fuel use6.0 gal/hour
22.7 l/hour
Power at rated engine speed106.39 hp
79.3 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power92.55 hp
69.0 kW
Fuel use6.2 gal/hour
23.5 l/hour
Max pull13,300 lbs
6032 kg
OCED Tractor Test 1741
7410 fuel use from test 241
OCED Tractor Test 1741
Diesel PowrQuad 4WD
1997
Link: OCED Tractor Test 1741 file
PTO performance
Max power109.54 hp
81.7 kW
Fuel use6.1 gal/hour
23.1 l/hour
Power at rated engine speed103.32 hp
77.0 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power95.86 hp
71.5 kW
Fuel use6.2 gal/hour
23.5 l/hour
Max pull13,502 lbs
6124 kg
