John Deere 7710 Transmission


John Deere 7710 tractor photo
1997 - 2003
7010 Series
Row-Crop tractor
Series map:
7610
7710
7810
140.0hp
155.0hp
175.0hp
Transmission options
16-speed partial power shift
19-speed full power shift
Infinitely Variable Transmission (IVT)
20-speed partial power shift
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Oil capacity91.6 qts (2WD)
86.7 L
 103.6 qts (4WD)
98.0 L
Four speeds (1-4) in four ranges (A-D) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch. Also available as 20-speed with five ranges.
Speeds
With 18.4-38 rear tires.
7710 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears19 forward and 7 reverse
Oil capacity96 qts (2WD)
90.9 L
 108 qts (4WD)
102.2 L
The power shift transmission is operated with a single right-hand shift lever. Transmission can be directly shifted up to gear 11 forward and 7 reverse.
Speeds
With 18.4-38 rear tires.
7710 PowerShift full power shift speeds
Shift Pattern
John Deere 7710 transmission controls
Transmission
TransmissionAutoPowr
TypeInfinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
The AutoPowr IVT became available in 2002.
Transmission
TransmissionJohn Deere AutoQuad
Typepartial power shift
Gears20 forward and reverse
Oil capacity91.6 qts (2WD)
86.7 L
 103.6 qts (4WD)
98.0 L
Four speeds (1-4) in five ranges (A-E) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch. AutoQuad uses push-button gear shifting on the range shift lever. Auto mode allows for automatic gear shifting to match load.
Speeds
With 18.4-38 rear tires.

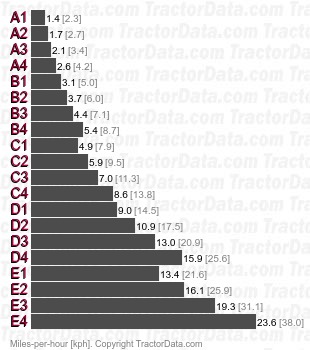

7710 AutoQuad partial power shift speeds
Shift Pattern
John Deere 7710 transmission controls
