John Deere 7710 Tests


John Deere 7710 tractor photo
1997 - 2003
7010 Series
Row-Crop tractor
Series map:
7610
7710
7810
140.0hp
155.0hp
175.0hp
Tractor Tests
OECD 1726: diesel PowrQuad 16-speed 4WD
OECD 1727: diesel PowerShift 4WD
OECD 1788: diesel PowrQuad 20-speed 4WD
OCED Tractor Test 1726

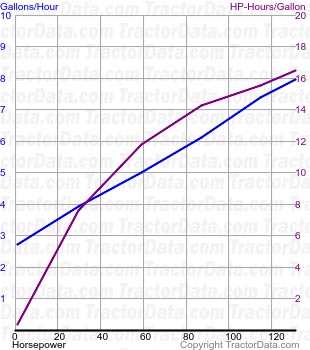

7710 fuel use from test 226
OCED Tractor Test 1726
Diesel PowrQuad 16-speed 4WD
May 13 - June 19, 1997
Link: OCED Tractor Test 1726 file
PTO performance
Max power151.46 hp
112.9 kW
Fuel use8.4 gal/hour
31.8 l/hour
Power at rated engine speed130.79 hp
97.5 kW
Fuel use8.1 gal/hour
30.7 l/hour
Drawbar performance
Max power118.34 hp
88.2 kW
Fuel use8.1 gal/hour
30.7 l/hour
Max pull18,651 lbs
8460 kg
OCED Tractor Test 1727

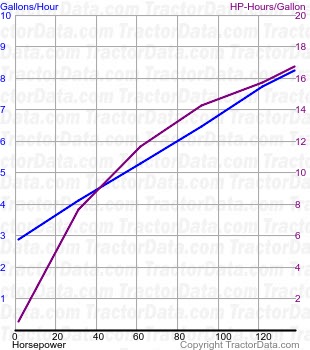

7710 fuel use from test 227
OCED Tractor Test 1727
Diesel PowerShift 4WD
May 15 - June 18, 1997
Link: OCED Tractor Test 1727 file
PTO performance
Max power146.26 hp
109.1 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated engine speed130.91 hp
97.6 kW
Fuel use7.9 gal/hour
29.9 l/hour
Drawbar performance
Max power111.37 hp
83.0 kW
Fuel use7.9 gal/hour
29.9 l/hour
Gear 9 used for power test.
Max pull18,789 lbs
8522 kg
Gear 4 used for pull test.
OCED Tractor Test 1788

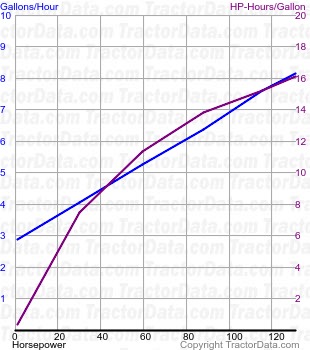

7710 fuel use from test 341
OCED Tractor Test 1788
Diesel PowrQuad 20-speed 4WD
October 31 - November 29, 2000
Link: OCED Tractor Test 1788 file
PTO performance
Max power150.94 hp
112.6 kW
Fuel use8.1 gal/hour
30.7 l/hour
Power at rated engine speed137.85 hp
102.8 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power123.87 hp
92.4 kW
Fuel use8.2 gal/hour
31.0 l/hour
Max pull19,685 lbs
8929 kg
