| | 1986 - 1990 |
| 7100 Series | | Row-Crop tractor |
|
Series map:
7110
7120
7145
122.2hp*
135.6hp*
160.0hp*
*Estimated engine power for comparison only.
| Transmission options |
| 24-speed synchronized with partial power shift |
| 32-speed |
| Transmission |
| Transmission | POWERMATIC
|
| Type | synchronized with partial power shift
|
| Gears | 24 forward and 8 reverse
|
| Clutch | hydraulic dry disc
|
| Oil capacity | 56 qts
53.0 L
|
| Four speeds (1-4) in three ranges (L/M/H) with high/low power shift. |

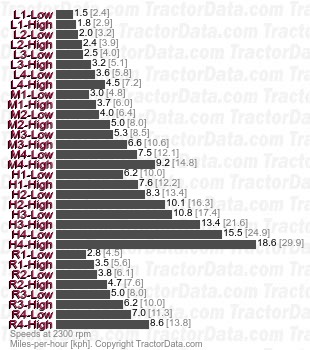

| Speeds |
| 20.8x38 rear tires. |
|
| Transmission |
| Gears | 32 forward and 8 reverse
|
| Oil capacity | 56 qts
53.0 L
|
