Tractors > Deutz-Allis > 7110

Deutz-Allis 7110

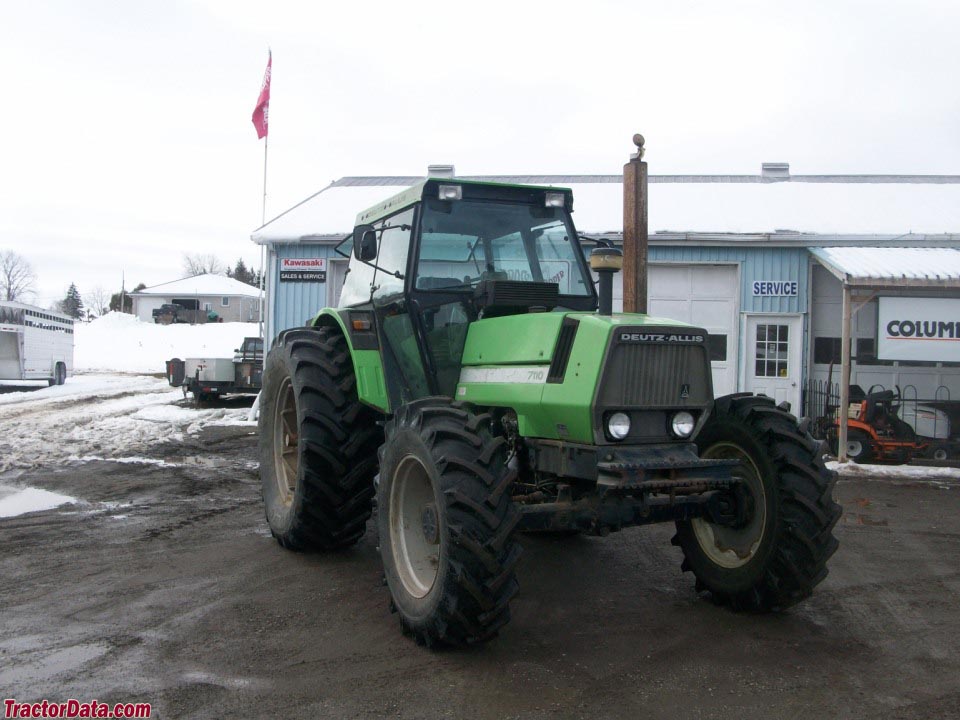

Deutz-Allis 7110 tractor photo
1986 - 1990
7100 Series
Row-Crop tractor
Series map:
7085
7110
7120
94.4hp*
122.2hp*
135.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerDeutz-Allis
Row-Crop tractor
Deutz-Allis 7110 Engine
Deutz 6.1L 6-cyl diesel
Engine details ...
Deutz-Allis 7110 Transmissions
15-speed fully synchronized
20-speed
Transmission details ...
Deutz-Allis 7110 Power
PTO (claimed)110 hp
82.0 kW
Mechanical
Two- or four-wheel drive
Differential lockfoot-operated rear
 OPTICTRAC automatic front
Steeringhydrostatic power
Hydraulic dry disc brakes
Detuz-Allis MasterCab standard with heat and air-conditioning. Agrotronic instrumentation standard, optional Agrotronic II.
Photos
Deutz-Allis 7110
Deutz-Allis 7110 photos...
Capacity
Fuel31 gal
117.3 L
 58 gal (optional)
219.5 L
Hydraulic system10 gal
37.9 L
Hydraulics
Typeopen center
Capacity10 gal
37.9 L
Pressure2538 psi
175.0 bar
Valves1 to 3
Total flow24 gpm
90.8 lpm
Tractor hitch
Rear TypeII
Rear lift11,464 lbs
5200 kg
Front HitchII OptOptional
Front lift6,393 lbs
2899 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Front PTOindependent OptOptional
Front PTO Type1000
Dimensions & Tires
2WD Wheelbase105.8 inches
268 cm
4WD Wheelbase106.4 inches
270 cm
Weight9700 to 10670 pounds
Front tire11.00-16
Rear tire18.4-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Charging volts14
Battery volts12
References
7110 references literature
7085/7110/7120/7145 published in 1986, by Deutz-Allis
