| | 1986 - 1990 |
| 7100 Series | | Row-Crop tractor |
|
Series map:
7085
7110
7120
94.4hp*
122.2hp*
135.6hp*
*Estimated engine power for comparison only.
| Transmission options |
| 15-speed fully synchronized |
| 20-speed |
| Transmission |
| Type | fully synchronized
|
| Gears | 15 forward and 5 reverse
|
| Oil capacity | 52 qts
49.2 L
|
| Five speeds in three ranges. |

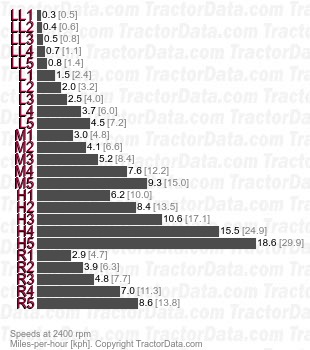

| Speeds |
| With 18.4x38 rear tires. |
|
| Transmission |
| Gears | 20 forward and 5 reverse
|
| Oil capacity | 52 qts
49.2 L
|

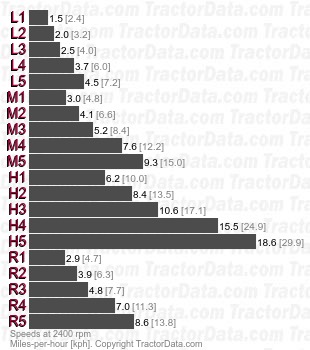

| Speeds |
| With 18.4x38 rear tires. |
|
