Deutz-Allis 6265
| | 1986 - 1989 |
| 6200 Series | | Utility tractor |
|
Series map:
6260
6265
6275
61.0hp
70.0hp
75.0hp
| Production |
| Manufacturer | Deutz-Allis
|
| Utility tractor |
| Built in Germany |
| Variants |
| DX 3.70 | similar Deutz-Fahr model
|
| Deutz-Allis 6265 Power |
| Engine | 70 hp
52.2 kW
|
| PTO (claimed) | 65 hp
48.5 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic drum brakes |
| Four-post ROPS. StarCab optional. |
| Capacity |
| ROPS Fuel | 24 gal
90.8 L
|
| Cab Fuel | 28 gal
106.0 L
|
| Hydraulic system | 4 gal
15.1 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 4 gal
15.1 L
|
| Pressure | 2358 psi
162.6 bar
|
| Valves | 1 to 3
|
| Pump flow | 11.4 gpm
43.1 lpm
|
| Total flow | 17.7 gpm
67.0 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift | 7275 lbs
3299 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| 6265/6275 published in 1986, by Deutz-Allis |
| 6265/6275 published in 1987, by Deutz-Allis |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 21, 2024 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

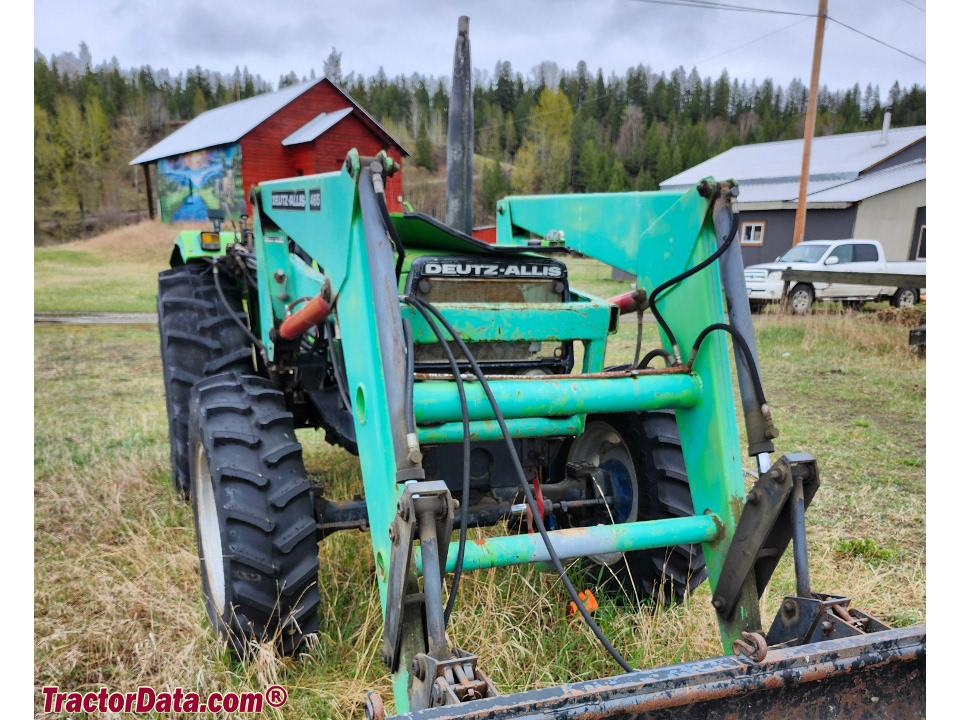

Deutz-Allis 6265 photos...
