Deutz-Allis 5230 Transmission


Deutz-Allis 5230 tractor photo
1986 - 1989
5200 Compact Series
Compact Utility tractor
Hinomoto built
Series map:
5220
5230
26.0hp
31.0hp
Transmission
Typesynchromesh
Gears12 forward and 4 reverse
Oil capacity29.6 qts
28.0 L

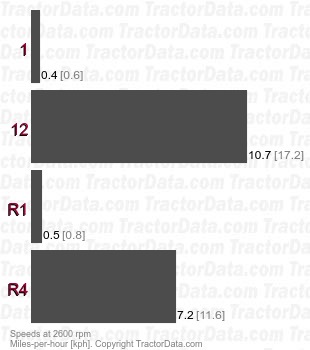

Speeds
With 12.4-24 R1 rear tires
5230  synchromesh speeds
