Tractors > New Holland > TM165

New Holland TM165 Engine



New Holland TM165 tractor photo
2000 - 2002
TM Series
Row-Crop tractor
Series map:
TM150
TM165
150.0hp
165.0hp
Engine Detail
New Holland
turbocharged diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Power165 hp
123.0 kW
Air cleanerdual dry element
Compression17.5:1
Rated RPM2300
Operating RPM1500-2200
Firing order1-5-3-6-2-4
Starterelectric
Starter volts12
Coolant capacity27.5 qts
26.0 L
Engine Oil

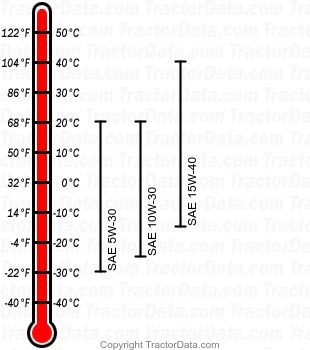

TM165 diesel engine oil chart
Oil capacity20 qts
18.9 L
