New Holland TM150
|
|
| Production | |
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Built in Basildon, England | |
| New Holland TM150 Engine | |
| New Holland 7.5L 6-cyl diesel | |
 Engine details ... |
| New Holland TM150 Transmissions | |
| 18-speed power shift | |
| 18-speed full power shift | |
 Transmission details ... |
| New Holland TM150 Power | |
| Engine | 150 hp 111.9 kW |
| PTO (claimed) | 120 hp 89.5 kW |
| Drawbar (tested) | 105.0 hp 78.3 kW |
| PTO (tested) | 130.9 hp 97.6 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard. |

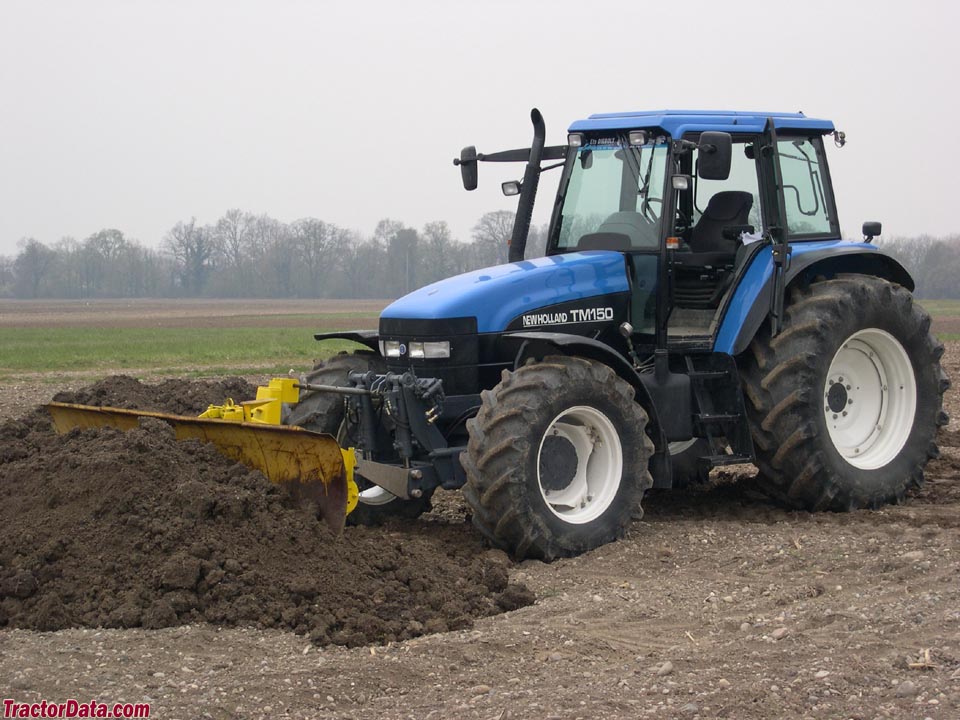

| Photos | |
 | |
 New Holland TM150 photos... | |
| Capacity | |
| Fuel | 85 gal 321.7 L |
| Hydraulic system | 26.5 gal 100.3 L |
| Hydraulics | |
| Type | closed-center load sensing (CCLS) |
| Capacity | 26.5 gal 100.3 L |
| Pressure | 2750 psi 189.6 bar |
| Rear valves | 4 (max) |
| Mid valves | 4 (max) |
| Pump flow | 28 gpm 106.0 lpm |
| Steering flow | 15.5 gpm 58.7 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | electronic lower-link draft sensing |
| Rear lift | 11690 lbs 5302 kg |
| Front Hitch | II |
| Front lift | 7208 lbs 3269 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| 540/540E/1000 *Optional. Only available in select markets. | |
| Engine RPM | 540@1970 |
| 540E@1546 | |
| 1000@2120 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 108.1 inches 274 cm |
| 4WD Wheelbase | 107.2 inches 272 cm |
| SuperSteer Wheelbase | 113.4 inches 288 cm |
| Terraglide Wheelbase | 109.6 inches 278 cm |
| Weight | 10472 to 13960 pounds |
| Front tire | 480/70R-28 |
| Rear tire | 580/70R-38 |
 Full dimensions and tires ... | |
| New Holland TM150 attachments | |
| front-end loader | |
 Attachment details ... |
| TM150 Serial Numbers | |
| 2000 | 13443B |
| 2001 | 155247B |
| 2002 | 173895B |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Batteries | 2 |
| Battery CCA | 900 |
| Battery volts | 12 |
| References | |
 | |
| 92 to 135 PTO hp Tractors published in 2001, by New Holland | |
| Operator's Manual TM115, TM125, TM135, TM150 and TM160 Tractors (604.53.261.00) published in 1999 |
