Tractors > New Holland > TM115

New Holland TM115 Engine



New Holland TM115 tractor photo
2000 - 2002
TM Series
Row-Crop tractor
Series map:
TM115
TM125
115.0hp
125.0hp
Engine Detail
New Holland
diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Power115 hp
85.8 kW
Air cleanerdual dry element
Compression17.5:1
Rated RPM2200
Operating RPM1500-2200
Firing order1-5-3-6-2-4
Starterelectric
Starter volts12
Coolant capacity26.9 qts
25.5 L
Engine Oil

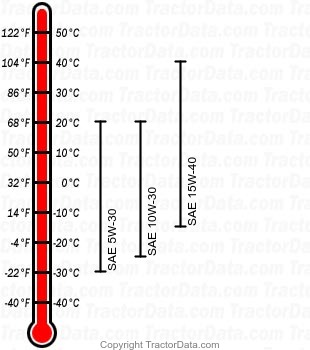

TM115 diesel engine oil chart
Oil capacity20 qts
18.9 L
