New Holland TG230 Tests
|
|
| OCED Tractor Test 1830 | |||
| |||
| OCED Tractor Test 1830 | |
| Diesel 18-speed 4WD September 24 - October 27, 2003 Link: OCED Tractor Test 1830 file | |

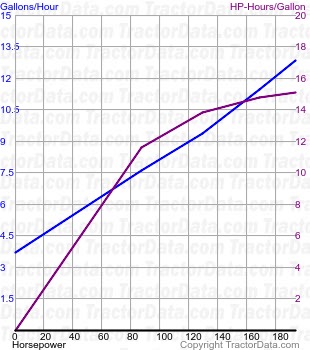

| PTO performance | |
| Max power | 216.31 hp 161.3 kW |
| Fuel use | 12.2 gal/hour 46.2 l/hour |
| Power at rated engine speed | 193.40 hp 144.2 kW |
| Fuel use | 12.8 gal/hour 48.4 l/hour |
| Power at rated PTO speed | 213.61 hp 159.3 kW |
| Fuel use | 12.8 gal/hour 48.4 l/hour |
| Drawbar performance | |
| Max power | 163.29 hp 121.8 kW |
| Fuel use | 12.9 gal/hour 48.8 l/hour |
| Gear 7 used for power test. | |
| Max pull | 19826 lbs 8993 kg |
| Gear 4 used for pull test. | |
