Tractors > New Holland > TG210

New Holland TG210

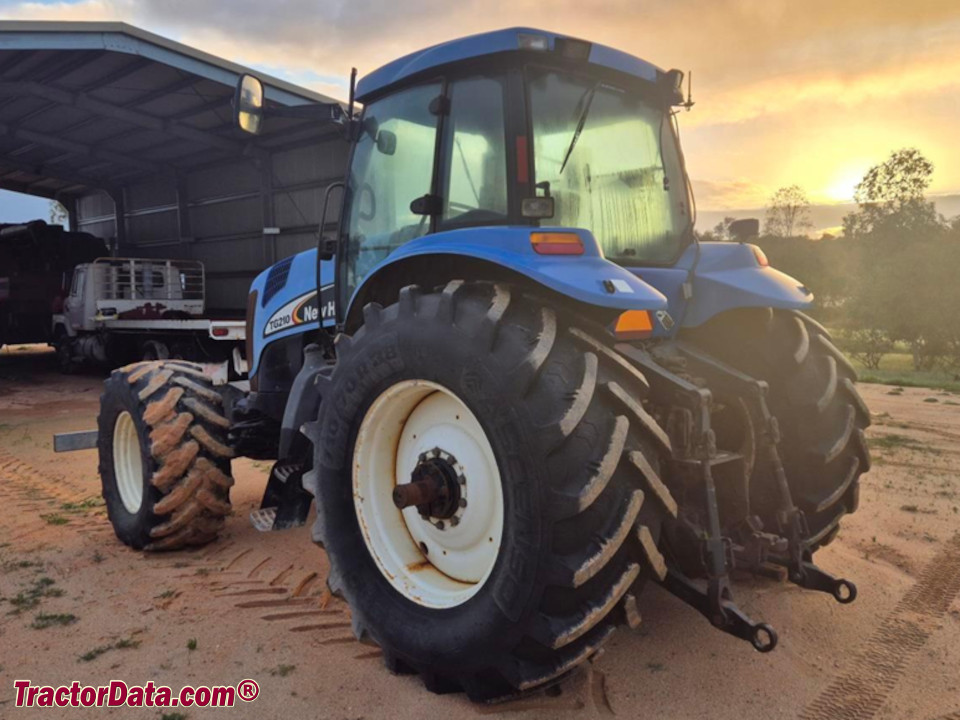

New Holland TG210 tractor photo
2003 - 2006
TG Series
Row-Crop tractor
Series map:
TG210
TG230
210.0hp
230.0hp
Production
ManufacturerNew Holland (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
Variants
MX210similar CaseIH model
New Holland TG210 Engine
CDC 8.3L 6-cyl diesel
Fuel tank130 gal
492.1 L
 160 galOptOptional
605.6 L
Engine details ...
New Holland TG210 Transmissions
18-speed full power shift
24-speed creeper
Transmission details ...
New Holland TG210 Power
Engine210 hp
156.6 kW
PTO (claimed)170 hp
126.8 kW
Drawbar (tested)146.80 hp
109.5 kW
PTO (tested)195.30 hp
145.6 kW
Performance test details ...
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
No photos of the New Holland TG210 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center load sensing
Pressure2930 psi
202.0 bar
Valves3 to 5
Pump flow38.6 gpm
146.1 lpm
 68 gpm*With optional Mega Flow
257.4 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlposition and electronic draft control
Rear lift (at 24"/610mm)13960 lbs
6332 kg
 15970 lbsOptOptional
7243 kg
 13850 lbs (Europe)
6282 kg
Front HitchIIIN OptOptional
Front lift (at 24"/610mm)9185 lbs
4166 kg
 9450 lbs (SuperSteer)
4286 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type1000 (1.75)
 540/1000 (1.375)OptOptional
Engine RPM540@2000
 1000@2000
Dimensions & Tires
Wheelbase121.2 inches
307 cm
 129.3 inches (SuperSteer)
328 cm
Weight19582 to 20455 pounds
Front tire16.9R30
Rear tire20.8R42
Full dimensions and tires ...
New Holland TG210 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps135
Batteries2
Battery CCA1000
Battery volts12
Battery Group31
References
TG210 references literature
TG Tractors published in 2002, by New Holland
TG Tractors published in 2003, by New Holland
