| | 2000 - 2001 |
| 84 Series | | Four-wheel Drive (4WD) tractor | | Versatile built |
|
Series map:
9484
9684
9884
310.0hp
360.0hp
425.0hp
| Transmission options |
| 12-speed partially synchronized |
| 12-speed full power shift |
| Transmission |

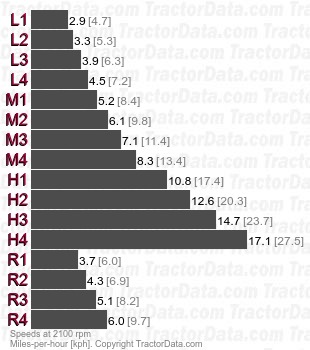

| Transmission | Quadrasync
|
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range. |
| Speeds |
| With 20.8-42 tires. |
|
| Shift Pattern |
 |
| Transmission |

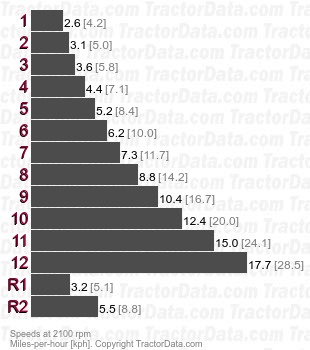

| Type | full power shift
|
| Gears | 12 forward and 2 reverse
|
| Clutch | electro-hydraulic wet disc
|
| Speeds |
| With 20.8-42 tires. |
|
