Tractors > New Holland > 9684

New Holland 9684 Tests



New Holland 9684 tractor photo
2000 - 2001
84 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9484
9684
9884
310.0hp
360.0hp
425.0hp
OCED Tractor Test 1942

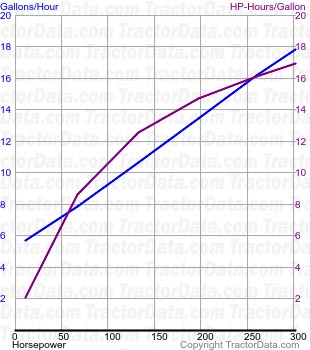

9684 fuel use from test 351
OCED Tractor Test 1942
Diesel 12-speed 4WD
June 1 - July 31, 2000
Link: OCED Tractor Test 1942 file
PTO performance
Max power349.1 hp
260.3 kW
Fuel use18.5 gal/hour
70.0 l/hour
Power at rated engine speed301.3 hp
224.7 kW
Fuel use17.8 gal/hour
67.4 l/hour
Drawbar performance
Max power277.2 hp
206.7 kW
Fuel use17.8 gal/hour
67.4 l/hour
Max pull31355 lbs
14222 kg
