Tractors > New Holland > TN55

New Holland TN55 Transmission



New Holland TN55 tractor photo
1999 - 2004
TN Series
Utility tractor
Series map:
TN55
TN65
53.0hp
57.0hp
Transmission options
8-speed gear
8-speed partially synchronized
16-speed partially synchronized
32-speed two-speed power shift
Transmission
Typegear
Gears8 forward and reverse
Clutch280mm dry disc
Four gears (1-4) in two ranges (A/B) with mechanical shuttle. Non-synchronized transmission, available only on the base TN55 model.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.

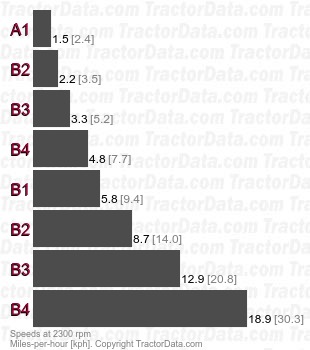

TN55 gear speeds
Transmission
TransmissionSynchro Command
Typepartially synchronized
Gears8 forward and reverse
Clutchdry disc (mechanical shuttle)
 wet disc (power shuttle)
Four synchronized gears (1-4) in two ranges (A/B). Available as either mechanical shuttle or power shuttle.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.
TN55 Synchro Command partially synchronized speeds
Transmission
TransmissionSynchro Command Plus
Typepartially synchronized
Gears16 forward and reverse
Clutchdry disc (mechanical shuttle)
 wet disc (power shuttle)
Four synchronized gears (1-4) in four ranges (A-D). Available as either mechanical shuttle or power shuttle. Standard transmission on the TN55D and TN55S.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.

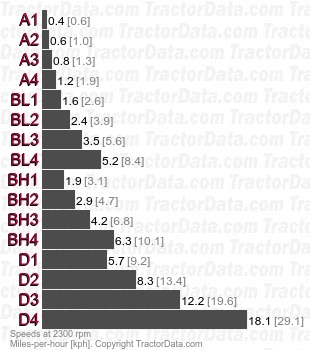

TN55 Synchro Command Plus partially synchronized speeds
Transmission
TransmissionDual Command
Typetwo-speed power shift
Gears32 forward and 16 reverse
Clutchwet discs
Four synchronized gears (1-4) in four ranges (A-D) with two-speed push-button power shift. Left-hand power shuttle.
Speeds
With 14.9-28 rear tires and 30 KPH transmission.

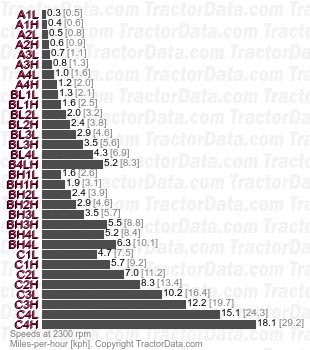

TN55 Dual Command two-speed power shift speeds
