Tractors > Allis Chalmers > HD11

Allis Chalmers HD11

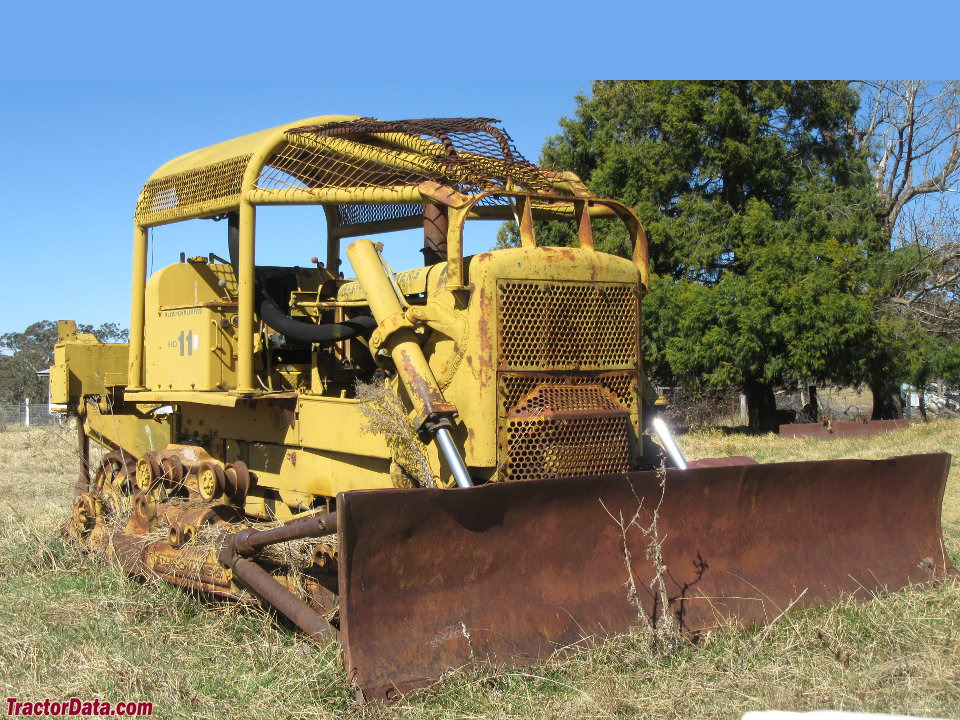

Allis Chalmers HD11 tractor photo
1955 - 1966
Agricultural Crawler tractor
Series map:
HD11
110.0hp
Production
ManufacturerAllis Chalmers
Agricultural Crawler tractor
Built in Springfield, Illinois, USA
Variants
HD11S6-roller agricultural
HD11ES7-roller agricultural
HD11B6-roller industrial
Allis Chalmers HD11 Engine
Allis-Chalmers 8.5L 6-cyl diesel
Fuel tank60 gal
227.1 L
Engine details ...
Allis Chalmers HD11 Transmission
6-speed sliding gear
Transmission details ...
Allis Chalmers HD11 Power
Engine (gross)110 hp
82.0 kW
Engine (net)99 hp
73.8 kW
Drawbar (claimed)77 hp
57.4 kW
Belt (claimed)94 hp
70.1 kW
Drawbar (tested)73.8 hp
55.0 kW
Belt (tested)89.75 hp
66.9 kW
Performance test details ...
Mechanical
Drivecrawler
Contracting band brakes
Open operator station.
Photos
Allis Chalmers HD11
Allis Chalmers HD11 photos...
Dimensions & Tracks
Weight21000 to 22200 pounds
16-inch tracks
Full dimensions and tracks ...
HD11 Serial Numbers
Location:Serial number on the rear of the right-side final drive.
1955101
19561058
19573255
19584115
19594768
19605802
19616448
19626995
19637870
19648606
196510533
196611451

FAQ: How to read a serial number table.
Electrical
Groundpositive
Batteries2
Battery volts12
References
HD11 references literature
Engineering-in-Action published in 1956, by Allis Chalmers
Farm Crawlers published in 1962, by Allis Chalmers
Crawler Tractor Farming published by Allis Chalmers
Big Power Farming published in 1965, by Allis Chalmers
HD-11 Crawler Tractor published in 1957, by Allis Chalmers
