Allis Chalmers HD16A Tests


Allis Chalmers HD16A tractor photo
1955 - 1970
Agricultural Crawler tractor
Nebraska Tractor Test 552

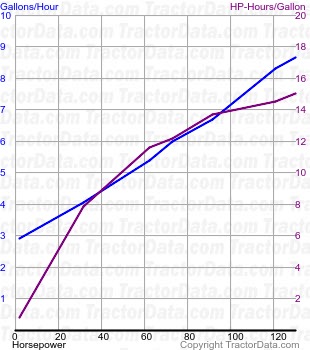

HD16A fuel use from test 552
Nebraska Tractor Test 552
Diesel 6-speed crawler
July 6 - 18, 1955
Link: Nebraska Tractor Test 552 file
Belt power (max)133.83 hp
99.8 kW
Belt fuel use (max)9.1 gal/hour
34.4 l/hour
Drawbar performance
Max power118.78 hp
88.6 kW
Gear 3 used for power test.
Max pull28743 lbs
13037 kg
Gear 1 used for pull test.
