Allis Chalmers HD5
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Agricultural Crawler tractor | |
| Built in Springfield, Illinois, USA | |
| Total built | 29,255 |
| Allis Chalmers HD5 Engine | |
| General Motors 2.3L 2-cyl diesel | |
| Fuel tank | 37 gal 140.0 L |
 Engine details ... | |
| Allis Chalmers HD5 Transmission | |
| 5-speed sliding gear | |
 Transmission details ... |
| Allis Chalmers HD5 Power | |
| Drawbar (claimed) | 30 hp 22.4 kW |
| Belt (claimed) | 43 hp 32.1 kW |
| Drawbar (tested) | 38.24 hp 28.5 kW |
| Belt (tested) | 47.85 hp 35.7 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Open operator station. | |
| Photos | |
 | |

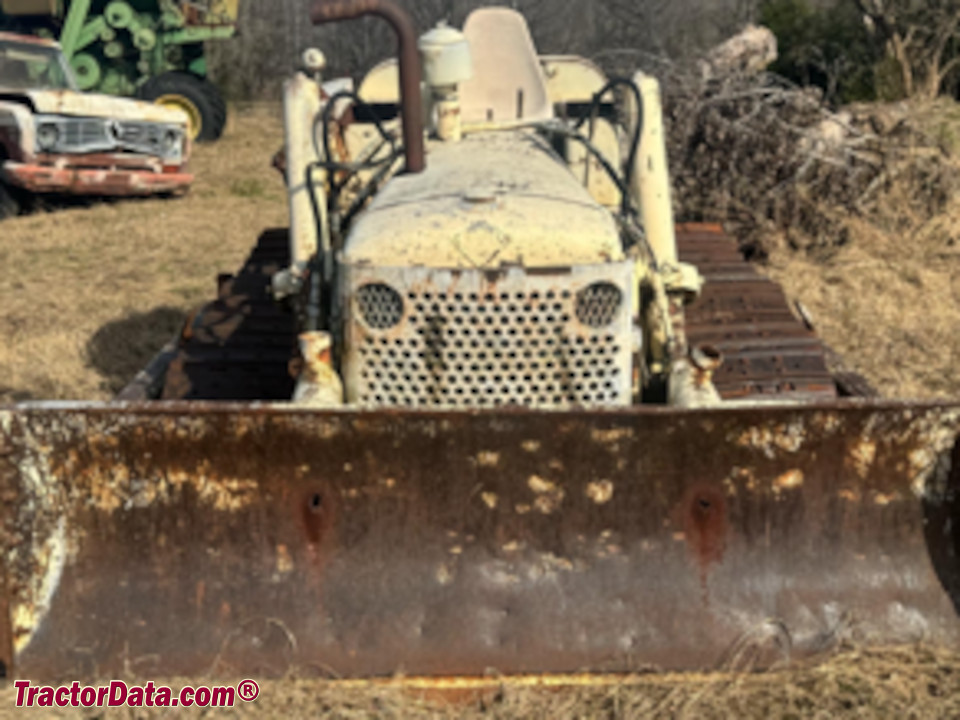

 Allis Chalmers HD5 photos... | |
| Dimensions & Tracks | |
| Weight | 10500 to 11250 pounds |
| 13-inch tracks | |
 Full dimensions and tracks ... | |
| HD5 Serial Numbers | |
| Location: | Steering clutch housing or instrument panel |
| 1946 | 1 |
| 1947 | 7 |
| 1948 | 1358 |
| 1949 | 4316 |
| 1950 | 7499 |
| 1951 | 11071 |
| 1952 | 14290 |
| 1953 | 17558 |
| 1954 | 21837 |
| 1955 | 25564 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| HD-5 2 Cycle Diesel published in 1947, by Allis Chalmers |
