Tractors > Allis Chalmers > HD14

Allis Chalmers HD14 Tests



Allis Chalmers HD14 tractor photo
1939 - 1947
Series map:
HD14
161.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 362

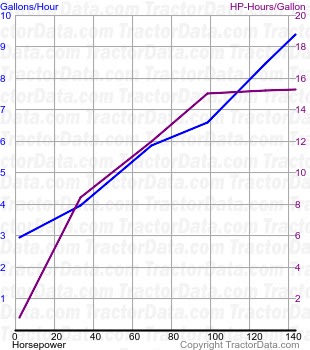

HD14 fuel use from test 362
Nebraska Tractor Test 362
Diesel 6-speed crawler
October 15 - November 5, 1940
Link: Nebraska Tractor Test 362 file
Belt power (max)145.39 hp
108.4 kW
Belt fuel use (max)9.6 gal/hour
36.3 l/hour
Drawbar performance
Max power126.98 hp
94.7 kW
Gear 2 used for power test.
Max pull28,019 lbs
12709 kg
Gear 1 used for pull test.
