Allis Chalmers HD7 Tests


Allis Chalmers HD7 tractor photo
1940 - 1950
Agricultural Crawler tractor
Nebraska Tractor Test 360

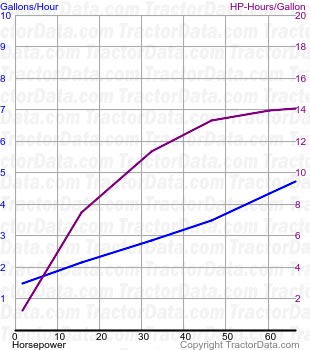

HD7 fuel use from test 360
Nebraska Tractor Test 360
Diesel 4-speed crawler
October 15 - 21, 1940
Link: Nebraska Tractor Test 360 file
Belt power (max)68.68 hp
51.2 kW
Belt fuel use (max)4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power57.31 hp
42.7 kW
Gear 1 used for power test.
Max pull12,171 lbs
5520 kg
Gear 1 used for pull test.
