Tractors > Allis Chalmers > S

Allis Chalmers S Tests



Allis Chalmers S tractor photo
1937 - 1942
Agricultural Crawler tractor
Tractor Tests
NTTL 286: diesel 5-speed crawler
NTTL 337: gasoline 5-speed crawler
Nebraska Tractor Test 286

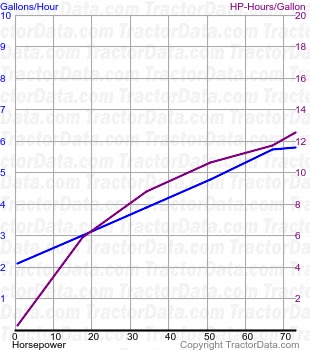

S fuel use from test 286
Nebraska Tractor Test 286
Diesel 5-speed crawler
September 16 - 25, 1937
Link: Nebraska Tractor Test 286 file
Belt power (max)74.82 hp
55.8 kW
Belt fuel use (max)6.0 gal/hour
22.7 l/hour
Drawbar performance
Max power62.97 hp
47.0 kW
Gear 1 used for power test.
Max pull16732 lbs
7589 kg
Gear 1 used for pull test.
Nebraska Tractor Test 337

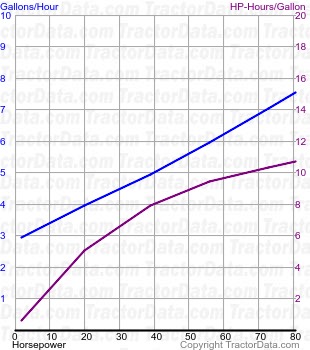

S fuel use from test 337
Nebraska Tractor Test 337
Gasoline 5-speed crawler
November 18 - 24, 1939
Link: Nebraska Tractor Test 337 file
PTO performance
Max power84.3 hp
62.9 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power68.9 hp
51.4 kW
Max pull11,367 lbs
5156 kg
