| | 1977 - 1980 |
| SD Series | | Utility tractor |
|
Series map:
SD3000
SD4000
22.4kw
29.0kw
| Transmission |
| Type | gear
|
| Gears | 24 forward and 8 reverse
|
| Clutch | dry disc
|
| Oil capacity | 37 qts
35.0 L
|
| Three gears, plus reverse, in four ranges. Tractor must be stopped, and clutch used, to shift gears and range. Additional creeper range doubles the number of available speeds. |

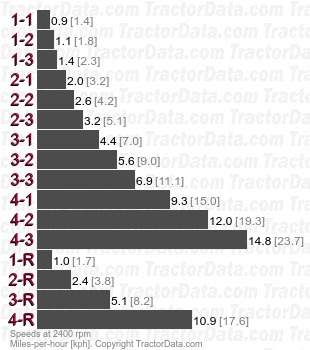

| Speeds |
| With 12.4/11-28 rear tires. Creeper speeds are 13% of standard speeds. |
|
