John Deere 4500 Engine


John Deere 4500 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4400
4500
4600
35.7hp
39.0hp
43.0hp
Engine Detail
Yanmar 4TNE84
diesel
4-cylinder
liquid-cooled
Displacement121.7 ci
2.0 L
Bore/Stroke3.31x3.54 inches
84 x 90 mm
Power (net)37 hp
27.6 kW
Power (gross)39 hp
29.1 kW
Fuel systemdirect injection
Air cleanerdry
Pre-heatingair heater
Compression18:1
Rated RPM2600
Torque92 lb-ft
124.8 Nm
Torque RPM1700
Starter volts12
Starter power2.7 hp
2.0 kW
Coolant capacity7.2 qts
6.8 L
Engine Oil

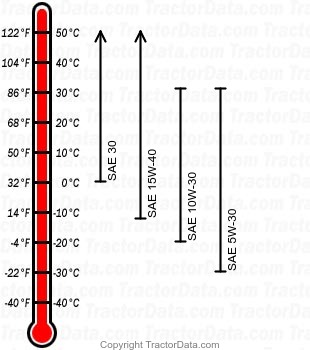

4500 diesel engine oil chart
Oil capacity5.1 qts
4.8 L
