John Deere 4640


John Deere 4640 tractor photo
1977 - 1984
4040 Series
Row-Crop tractor
Series map:
4440
4640
121.0kw
138.0kw
Production
ManufacturerJohn Deere
Row-Crop tractor
John Deere 4640 Engine
John Deere 7.6L 6-cyl diesel
Fuel tank83 gal
314.2 L
Engine details ...
John Deere 4640 Transmissions
16-speed partial power shift
8-speed full power shift
Transmission details ...
John Deere 4640 Power
Engine (gross)185.1 hp
138.0 kW
Engine (net)174.3 hp
130.0 kW
PTO (claimed)155.6 hp
116.0 kW
Mechanical
Drive4x2 2WD
 4x4 HFWD 4WD
 4x4 MFWD 4WD
Final drivesplanetary
Differential lockhydro-mechanical
Power steering
Hydraulic wet disc brakes
Cab standard.
Photos
No photos of the John Deere 4640 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Tractor hitch
Rear TypeIII
Controlposition and draft control
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase118.5 inches
300 cm
Weight14350 lbs
6509 kg
Front tire11.00-16
Rear tire20.8-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps88
Batteries2
Battery volts12
Battery AH88
References

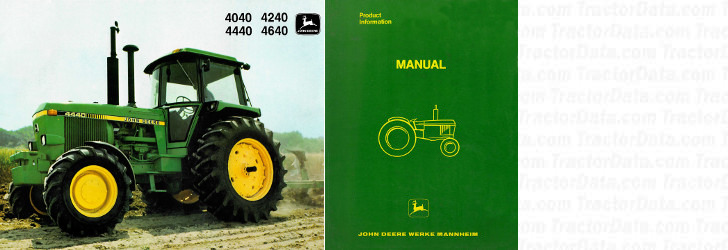

4640 references literature
4040 4240 4440 4640 published in 1980, by John Deere
Product Information Manual published in 1977, by John Deere
