Lamborghini Champion 150 Transmission


Lamborghini Champion 150 tractor photo
1998 - 2004
Champion Series
Row-Crop tractor
Series map:
Champion 135
Champion 150
100.7kw
111.9kw
Transmission options
18-speed 9-speed power shift
27-speed creeper
Transmission
Type9-speed power shift
Gears18 forward and reverse
Clutchhydraulic wet disc
Nine power shift gears in two ranges with power shuttle.
Speeds
With 520/70R38 rear tires. Rear speeds are aboutg 9% faster than forward.

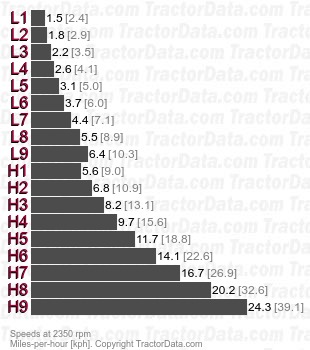

Champion 150  9-speed power shift speeds
Transmission
Typecreeper
Gears27 forward and reverse
Speeds

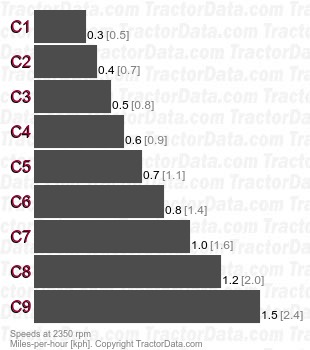

Champion 150  creeper speeds
