| | 1978 - 1981 |
| 2200 Series | | Utility tractor |
|
Series map:
2200
2204
41.8kw
41.8kw
| Transmission options |
| 8-speed synchromesh |
| 16-speed two-speed power shift |
| Transmission |

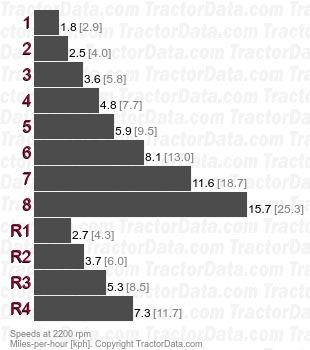

| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Four gears in two ranges, plus reverse. |
| Speeds |
|
| Transmission |

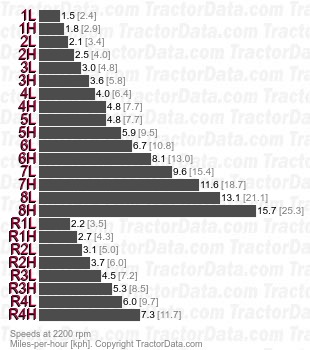

| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | 279.4mm dry disc
|
| Optional hydraulic power shift adds an additional high-low shift to the base eight-speed transmission. |
| Speeds |
|
