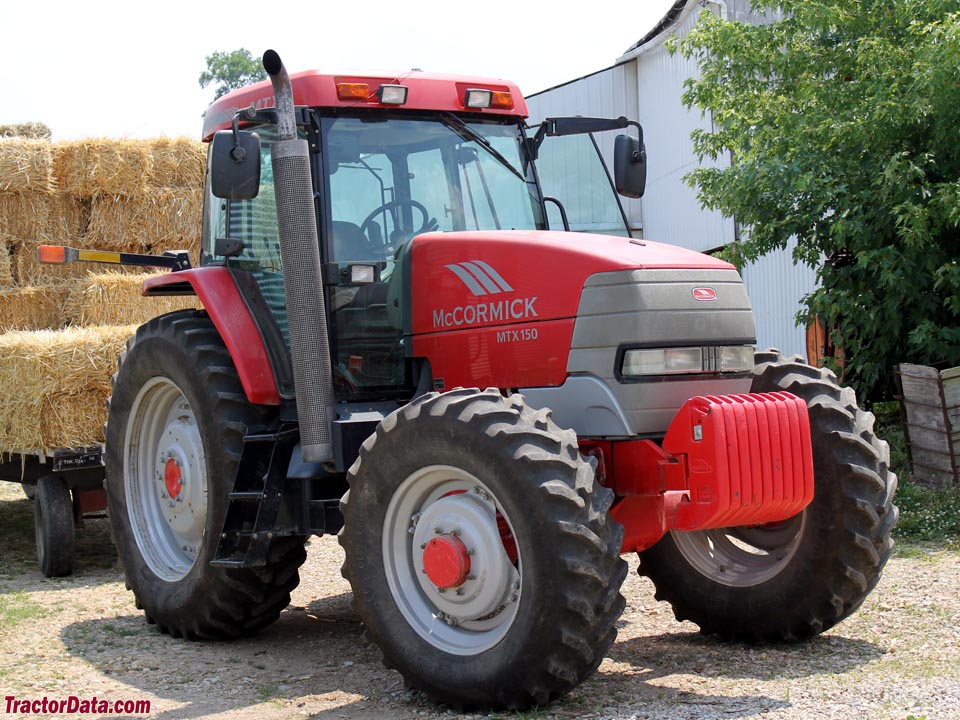

McCormick Intl MTX150
| | 2004 - 2007 |
| MTX Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | McCormick Intl
|
| Row-Crop tractor |
| Built in Doncaster, England |
| McCormick Intl MTX150 Power |
| Engine | 152 hp
113.3 kW
|
| PTO (claimed) | 130 hp
96.9 kW
|
| Mechanical |
| Four-wheel drive |
| Steering | hydrostatic power
|
| Differential hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | pressure flow compensating
|
| Pump flow | 28.8 gpm
109.0 lpm
|
| Tractor hitch |
| Rear Type | IIIN
|
| Control | electronic lower link draft sensing
|
| Rear lift | 14557 lbs
6603 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 95
|
| | 120 (optional)
|
| Battery volts | 12
|
