| | 2003 - 2007 |
| MC Series | | Utility tractor |
|
Series map:
MC120
MC135
115.0hp
132.0hp
| Transmission options |
| 16-speed partial power shift |
| 32-speed partial power shift with creeper |
| Transmission |
| Type | partial power shift
|
| Gears | 16 forward and 12 reverse
|
| Clutch | wet disc
|
| Oil capacity | 79.2 qts
75.0 L
|
| Four power shift speeds in four ranges with power shuttle. Available AutoSpeed transmission option with push-button range and power shifting. Available in 30 KPH and 40 KPH gearing. |

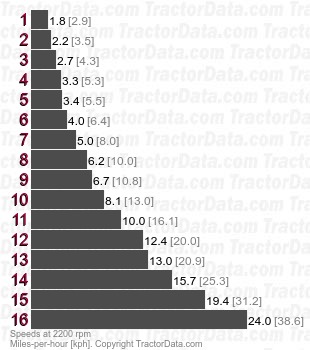

| Speeds |
| With 18.4R34 rear tires and 40 KPH transmission. Reverse speeds are 15% faster than forward in the same gear. |
|
| Transmission |
| Type | partial power shift with creeper
|
| Gears | 32 forward and 24 reverse
|
| Creeper range option doubles the available speeds in the transmission. |

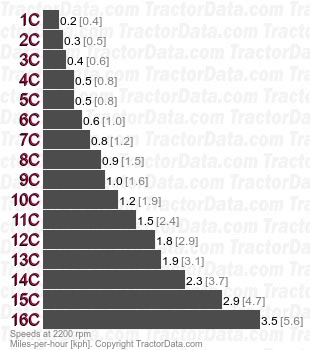

| Speeds |
| With 18.4R34 rear tires. Reverse speeds are 15% faster than forward in the same gear. |
|
