| | 2001 - 2003 |
| C Series | | Utility tractor |
|
Series map:
C80
C90
C100
84.0hp
90.0hp
102.0hp
| Transmission options |
| 8-speed synchromesh |
| 8-speed shuttle |
| 16-speed two-speed power shift |

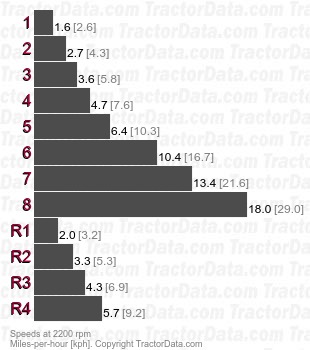

| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry disc
|
| Speeds |
| With 18.4-30 rear tires. |
|

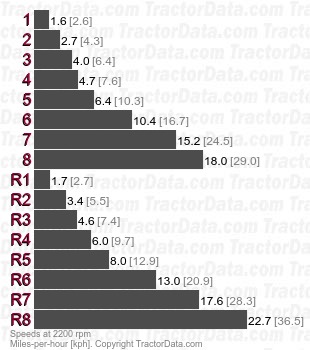

| Transmission |
| Type | shuttle
|
| Gears | 8 forward and reverse
|
| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | dry disc
|
