| | 2006 - 2009 |
| 8030 Series | | Row-Crop tractor |
|
Series map:
8330
8430
8530
275.0hp
305.0hp
330.0hp
| Transmission |
| Transmission | John Deere PowerShift
|
| Type | full power shift
|
| Gears | 16 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 160 qts
151.4 L
|
| | 168 qts (ILS)
159.0 L
|
| Full power shift transmission operated with right-hand control lever. Transmission defaults to gear 7-forward and 2-reverse on startup, although this may be re-programmed. Automatic PowerShift (APS) enables automatic shifting to maintain engine load. |
| Speeds |
|
| Transmission |
| Transmission | John Deere Infinitely Variable Transmission (IVT)
|
| Gears | infinite forward and reverse
|
| IVT available with 40 or 50 kph (25 or 31 mph) maximum speed. With maximum speed set to less than 2 kph the transmission automatically enters creeper mode. |

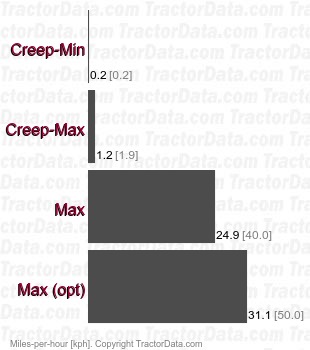

| Speeds |
|
