John Deere 8330 Transmission


John Deere 8330 tractor photo
2006 - 2009
8030 Series
Row-Crop tractor
Series map:
8230
8330
8430
245.0hp
275.0hp
305.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Clutchhydraulic wet disc
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
Full power shift transmission operated with right-hand control lever. Transmission defaults to gear 7-forward and 2-reverse on startup, although this may be re-programmed. Automatic PowerShift (APS) enables automatic shifting to maintain engine load.
Speeds
8330 PowerShift full power shift speeds
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
IVT available with 40 or 50 kph (25 or 31 mph) maximum speed. With maximum speed set to less than 2 kph the transmission automatically enters creeper mode.
Speeds

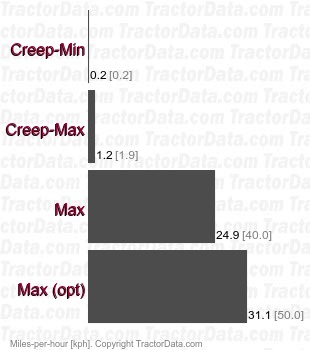

8330 Infinitely Variable Transmission (IVT)  speeds
