John Deere 8330 Tests


John Deere 8330 tractor photo
2006 - 2009
8030 Series
Row-Crop tractor
Series map:
8230
8330
8430
245.0hp
275.0hp
305.0hp
OCED Tractor Test 1887

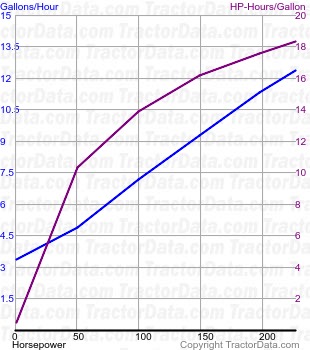

8330 fuel use from test 554
OCED Tractor Test 1887
Diesel PowerShift 4WD
September 25 - October 17, 2006
Link: OCED Tractor Test 1887 file
PTO performance
Max power261.5 hp
195.0 kW
Fuel use14.0 gal/hour
53.0 l/hour
Power at rated engine speed226.6 hp
169.0 kW
Fuel use12.4 gal/hour
46.9 l/hour
Power at rated PTO speed248.75 hp
185.5 kW
Fuel use13.3 gal/hour
50.3 l/hour
Drawbar performance
Max power199.42 hp
148.7 kW
Fuel use12.4 gal/hour
46.9 l/hour
Gear 10 used for power test.
Max pull18482 lbs
8383 kg
Gear 7 used for pull test.
