John Deere 8130


John Deere 8130 tractor photo
2006 - 2009
8030 Series
Row-Crop tractor
Series map:
8130
8230
225.0hp
245.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
John Deere 8130 Engine
John Deere 9.0L 6-cyl diesel
Engine details ...
John Deere 8130 Power
Engine (gross)225 hp
167.8 kW
Engine (max)240 hp
179.0 kW
PTO (claimed)180 hp
134.2 kW
Drawbar (tested)158.05 hp
117.9 kW
PTO (tested)208.27 hp
155.3 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD
 4x4 Independent Link Suspension MFWD 4WD (ILS)
Power steering
Wet disc brakes
CommandView cab standard.
Capacity
Fuel180 gal
681.3 L
Hydraulic system9.5 gal
36.0 L
 14.5 gal (with aux reservoir)
54.9 L
Hydraulics
Typeclosed center PFC
Capacity9.5 gal
36.0 L
 14.5 gal (with aux reservoir)
54.9 L
Pressure2098 psi
144.7 bar
Valves3 to 5
Pump flow31.7 gpm
120.0 lpm
Total flow44 gpm
166.5 lpm
 60 gpm (optional)
227.1 lpm
Tractor hitch
Rear TypeIII/IIIN
 IVN/III (optional)
Rear lift (at 24"/610mm)12400 lbs
5624 kg
 15200 lbs (optional)
6894 kg
 17300 lbs (optional)
7847 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
 540/1000 (optional)
Engine RPM540@1817
 1000@2000
Dimensions & Tires
Wheelbase118.9 inches (ILS)
302 cm
 120.1 inches (MFWD)
305 cm
 126.8 inches (2WD)
322 cm
Weight21774 to 25147 pounds
Front tire11.00-24
Rear tire480/80R46
Full dimensions and tires ...

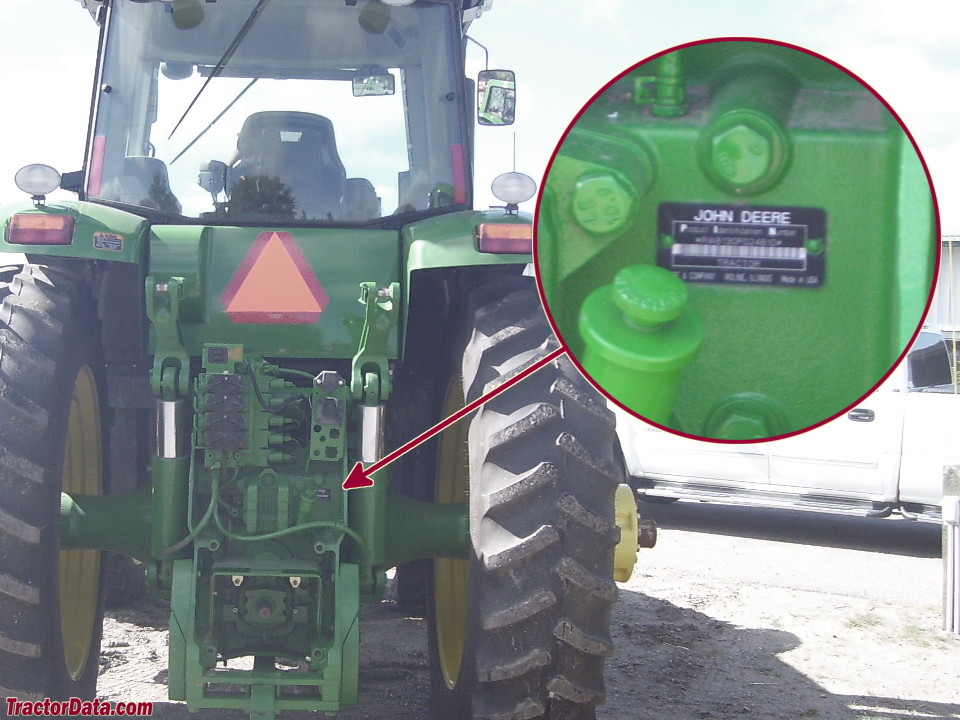

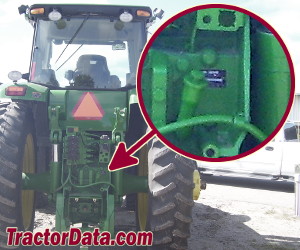

8130 Serial Number Location
John Deere 8130 serial number location
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Batteries2
Battery CCA925
Battery volts12
References
8130 references literature
8030 Series 2007 Updates published by John Deere
