John Deere 8130 Transmission


John Deere 8130 tractor photo
2006 - 2009
8030 Series
Row-Crop tractor
Series map:
8130
8230
225.0hp
245.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Clutchhydraulic wet disc
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
Full power shift transmission operated with right-hand control lever. Transmission defaults to gear 7-forward and 2-reverse on startup, although this may be re-programmed. Automatic PowerShift (APS) enables automatic shifting to maintain engine load.
Speeds

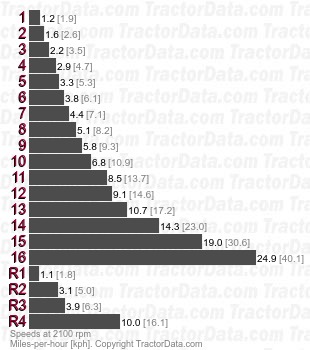

8130 PowerShift full power shift speeds
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
IVT available with 40 or 50 kph (25 or 31 mph) maximum speed. With maximum speed set to less than 2 kph the transmission automatically enters creeper mode.
Speeds

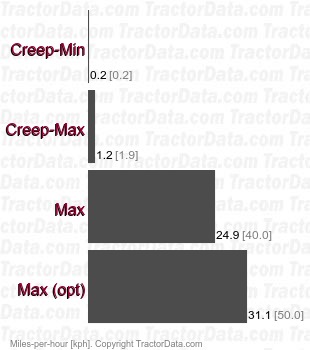

8130 Infinitely Variable Transmission (IVT)  speeds
