Fendt F255GT Transmission


Fendt F255GT tractor photo
1976 - 1982
Tool Carrier tractor
Series map:
F255GT
F275GT
41.0kw
52.2kw
Transmission options
14-speed synchromesh
20-speed creeper
Transmission
Typesynchromesh
Gears14 forward and 4 reverse
Clutchmechanical dry disc
Speeds
With 16.9/14-34 rear tires.

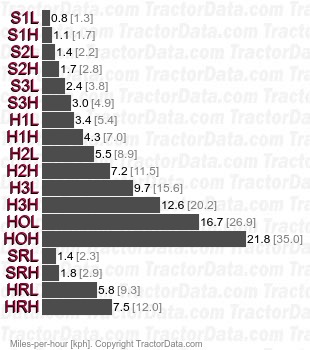

F255GT  synchromesh speeds
Transmission
Typecreeper
Gears20 forward and 6 reverse
Speeds
With 16.9/14-34 rear tires.

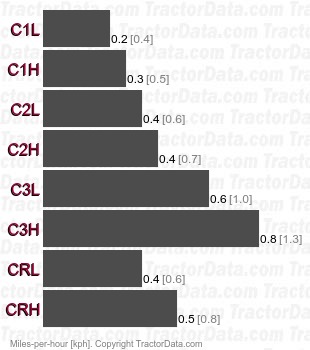

F255GT  creeper speeds
