Tractors > Fendt > Favorit 509C

Fendt Favorit 509C Transmission



Fendt Favorit 509C tractor photo
1994 - 1999
Favorit 500C Series
Series map:
Favorit 509C
Favorit 510C
70.8kw
78.3kw
Transmission
Typefour-speed power shift
Gears44 forward and reverse
Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.
Speeds
With 520/70R38 rear tires and 50 kph option.

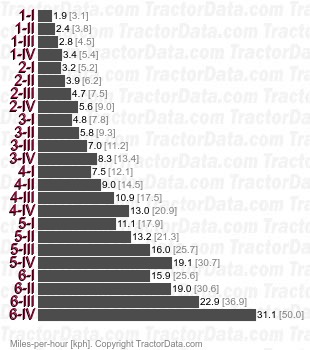

Favorit 509C four-speed power shift speeds
Shift Pattern

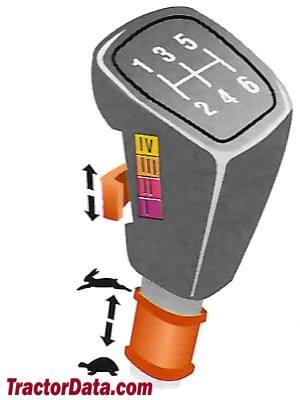

Fendt Favorit 509C transmission controls
