Fendt Farmer 306LS
|
|
| Production | |
| Manufacturer | Fendt |
| Row-Crop tractor | |
| Fendt Farmer 306LS Engine | |
| MWM 4.2L 4-cyl diesel | |
| Fuel tank | 28.3 gal 107.1 L |
 Engine details ... | |
| Fendt Farmer 306LS Transmissions | |
| 15-speed synchromesh | |
| 21-speed | |
 Transmission details ... |
| Fendt Farmer 306LS Power | |
| Engine | 70 hp 52.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Cab standard with heat. Air-conditioning optional. |
| Photos | |
 | |

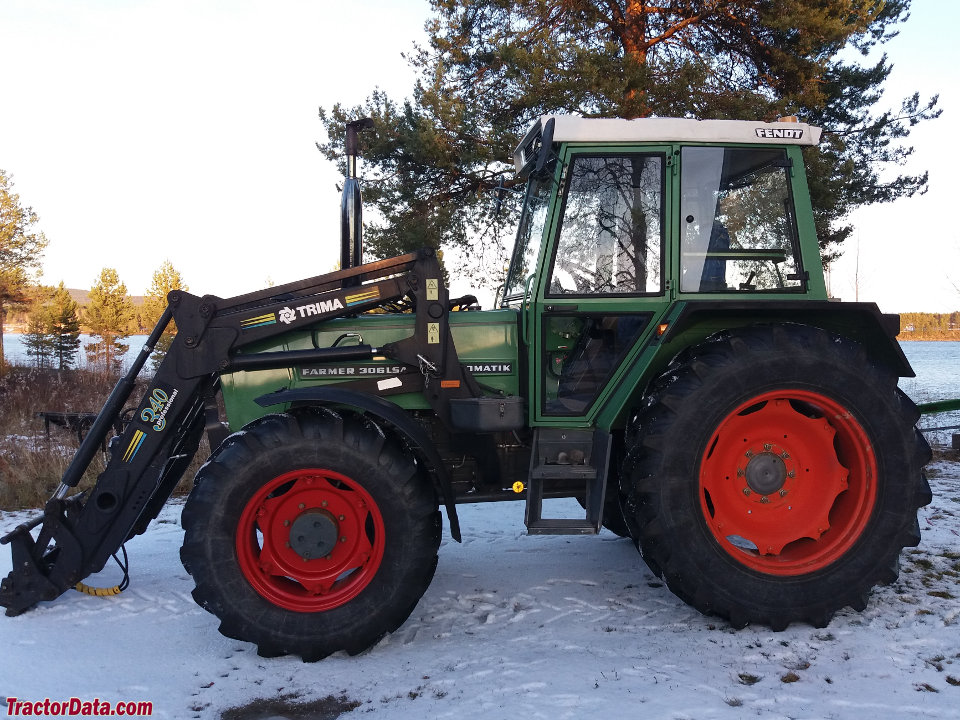

 Fendt Farmer 306LS photos... | |
| Hydraulics | |
| Type | open center |
| Pump flow | 10.0 gpm 37.9 lpm |
| Steering flow | 8.7 gpm 32.9 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift | 6107 lbs 2770 kg |
| Front Hitch | II OptOptional |
| Front lift | 5534 lbs 2510 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| 540/750 | |
| 540/750/1000 | |
| Front PTO | independent |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| 2WD Wheelbase | 91.3 inches 231 cm |
| 4WD Wheelbase | 77.6 inches 197 cm |
| Weight | 7793 to 8168 pounds |
| Front tire | 7.50-20 |
| 2WD Rear tire | 16.9R34 |
 Full dimensions and tires ... | |
| Fendt Farmer 306LS attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 33 |
| 55 OptOptional | |
| Battery volts | 12 |
| Battery AH | 110 |
| References | |
 | |
| Innovations for 1988 published by Fendt |
